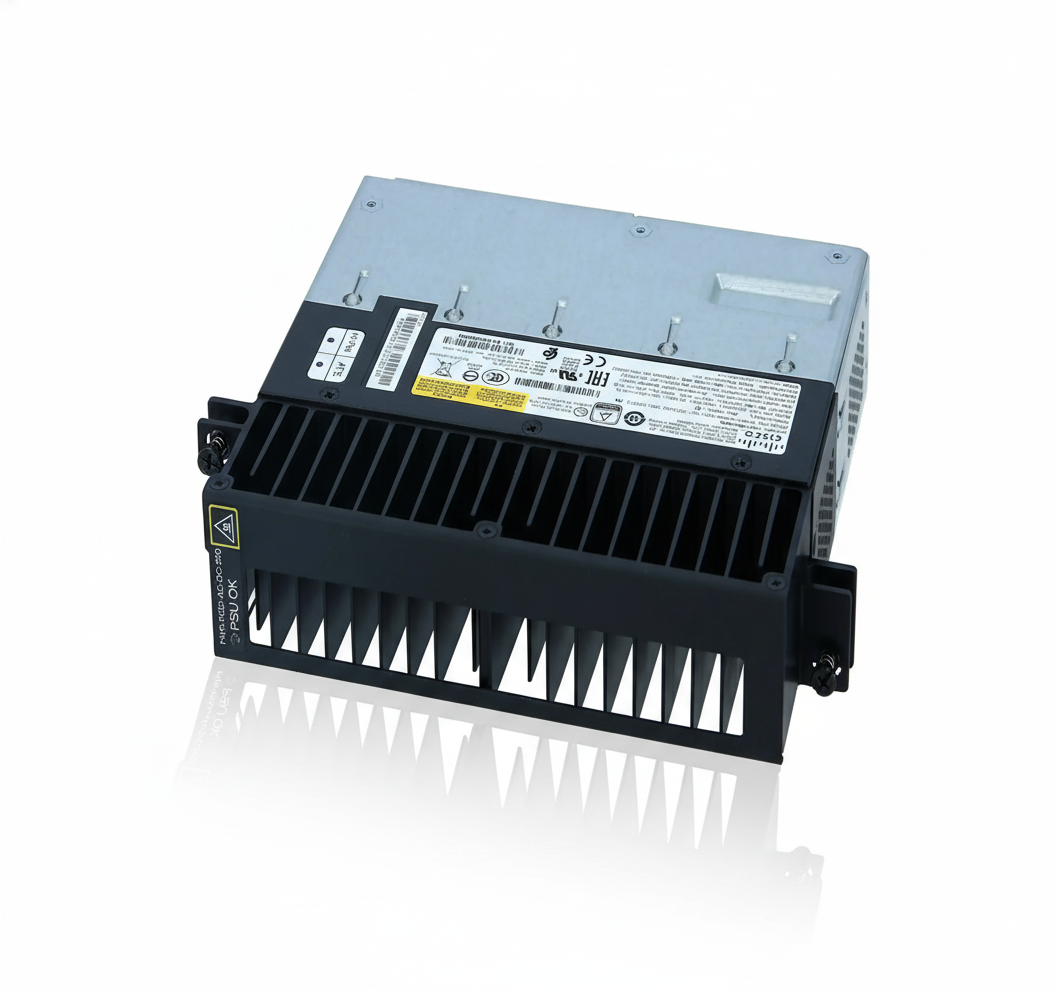

Cisco PWR-RGD-LOW-DC-H DC Power Supply 150 W 24-60 V DC

Cisco PWR-RGD-LOW-DC-H – Industrial DC Power Supply / 24-60 V DC

Overview :

The Cisco PWR-RGD-LOW-DC-H is a 150-watt DC power supply module designed for industrial and hazardous-location deployment. It supplies low-voltage DC input in the range of 24 to 60 V DC (with support up to 18 to 75 V DC) and is compatible with Cisco’s rugged series switches in industrial applications. It is intended to support PoE/PoE+ capable switches requiring reliable power budgets in demanding environments. The unit is hot-pluggable and built to withstand harsh conditions such as vibration, shock, and extreme temperatures often found in manufacturing, process, transportation and utility installations. As a HazLoc-rated power module, it integrates with Cisco Industrial Ethernet 4000, 5000 and 9300-Rugged series systems, providing galvanically isolated output and support for DC input sources common in industrial settings.

Key Features :

• 150 W DC output rated for industrial switches

• Nominal input voltage range 24 – 60 V DC (supported 18 – 75 V)

• HazLoc certified module for deployment in hazardous locations

• Supports PoE/PoE+ enabled industrial switches

• Hot-swappable power module design for minimal downtime
