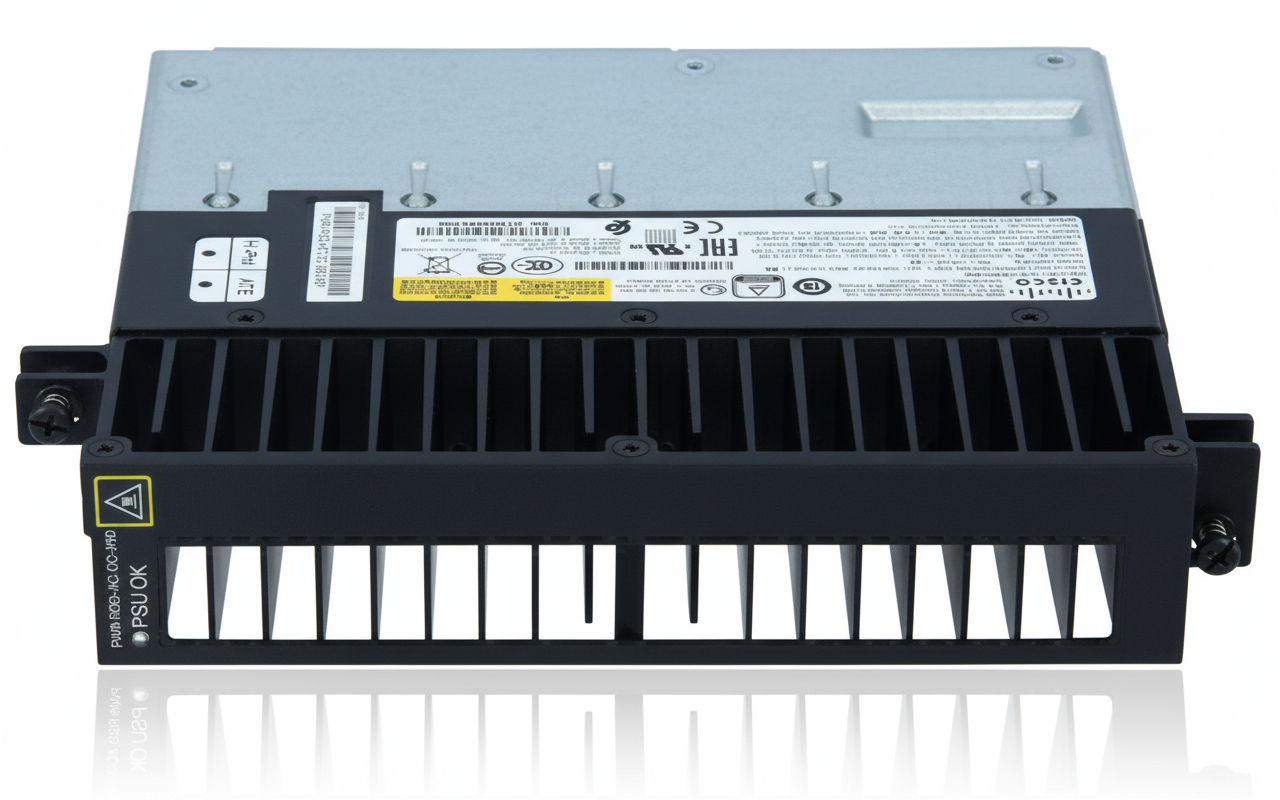

Cisco PWR-RGD-AC-DC-H 150 W Rugged AC/DC Power Module

Cisco PWR-RGD-AC-DC-H – Rugged Industrial AC/DC Power Module

Overview :

The Cisco PWR-RGD-AC-DC-H is a hot-plug, high-voltage AC/DC power-supply module designed for industrial Ethernet switches deployed in harsh or hazardous environments. It supports nominal input voltages of 100–240 VAC at 50/60 Hz and 100–250 VDC, with an absolute maximum range of 85–264 VAC and 88–300 VDC, making it suited for mixed AC/DC supply conditions. It delivers up to 150 W of output power and is certified for use in hazardous-location applications (HazLoc), enabling industrial deployments such as utility substations, transportation control systems or outdoor enclosures. The module fits into the chassis of compatible Cisco rugged switches (for example the Cisco IE 4010 and IE 9300 series), supports hot-swapping for minimal downtime and integrates seamlessly within Cisco’s industrial-network architecture.

Key Features :

• Wide input range: 100–240 VAC or 100–250 VDC (nominal)

• Hot-plug module design for field serviceability

• HazLoc certified for hazardous-location environments

• Ruggedized module weight ~2.55 lbs, compact form factor

• Up to 150 W output power for industrial Ethernet usage
