Cisco PWR-RGD-AC-DC AC/DC 150 W Rugged Power Supply

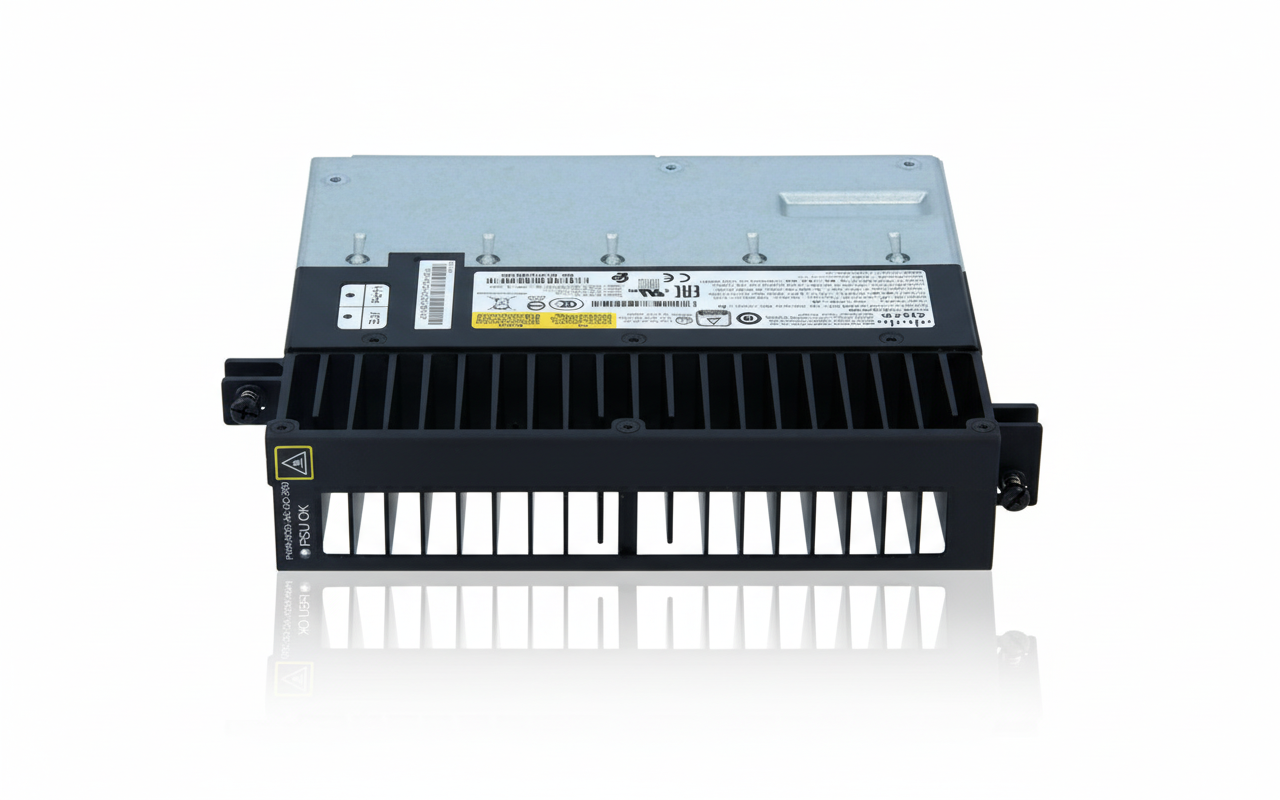

Cisco PWR-RGD-AC-DC – Rugged AC/DC Power Supply Module

Overview :

The Cisco PWR-RGD-AC-DC is a compact, hot-plug power supply module designed for industrial-grade network switches operating in demanding environments. It provides up to 150 W of output and accepts a wide-range input of 100-240 VAC (50-60 Hz) or 100-250 VDC, enabling deployment in both conventional and high-voltage DC installations. The module weighs approximately 2.55 lbs and measures 1.58 × 7 × 5 inches (without mounting flanges), making it suitable for 1 RU rack-mount systems. It supports an absolute maximum input range of 85-265 VAC or 88-300 VDC, offering resilience in fluctuating supply conditions. Its design supports PoE/PoE+ budgets—for example one unit providing up to 80 W for powered devices and two modules offering up to 200 W—making it a viable choice for network access switches in industrial, utility, transportation or harsh-environment deployments. The unit is engineered for reliability, redundancy and service-friendly replacement.

Key Features :

• Accepts both AC 100-240 V and DC 100-250 V input

• Hot-plug, plug-in module simplifies field replacement

• Output rated at 150 W for high-budget PoE/PoE+ support

• Module weight approx. 2.55 lbs (1.16 kg) for compact rack systems

• Supports input range to 85-265 VAC or 88-300 VDC for unstable supplies

Specifications :
