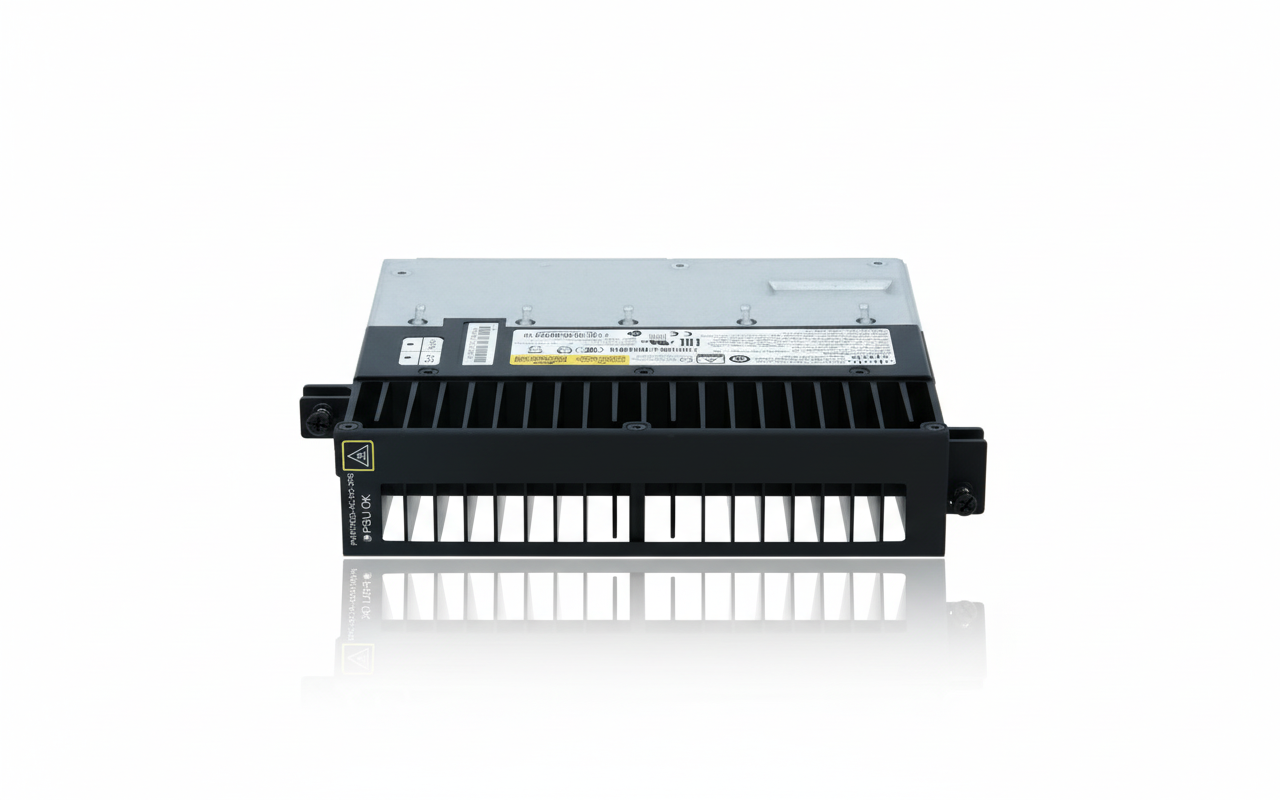

Cisco PWR-RGD-AC-DC-250 Rugged 250W AC/DC Power Supply

Cisco PWR-RGD-AC-DC-250 – Rugged Power Supply / 250 W

Overview :

The Cisco PWR-RGD-AC-DC-250 is a hot-swappable, rack-mount-compatible power supply module engineered to deliver up to 250 W of output for industrial-grade Ethernet switches. It supports dual input modes—100-240 VAC at 50/60 Hz or 100-250 VDC—enabling deployment in both standard and high-voltage environments. The unit is designed for rugged installations, with operating temperature tolerance down to -40 °C and compatibility with high-PoE scenarios when used in conjunction with the Cisco IE 5000 or IE 9300 series. The module extends approximately 1.18 inches beyond the rear chassis panel when installed, and weighs approximately 3.10 lbs, facilitating planning for rack-depth and cooling. With support for both AC and high-voltage DC inputs, it suits edge, outdoor, and industrial telecom networks where stable power and redundancy are critical.

Key Features :

• Supports both 100-240 VAC and 100-250 VDC input range

• Delivers up to 250 W output for PoE budget expansion

• Hot-swappable module design for minimal service disruption

• Weighs approximately 3.10 lbs enabling compact rack planning

• Extends 1.18 in (30 mm) beyond chassis rear when installed

Specifications :
