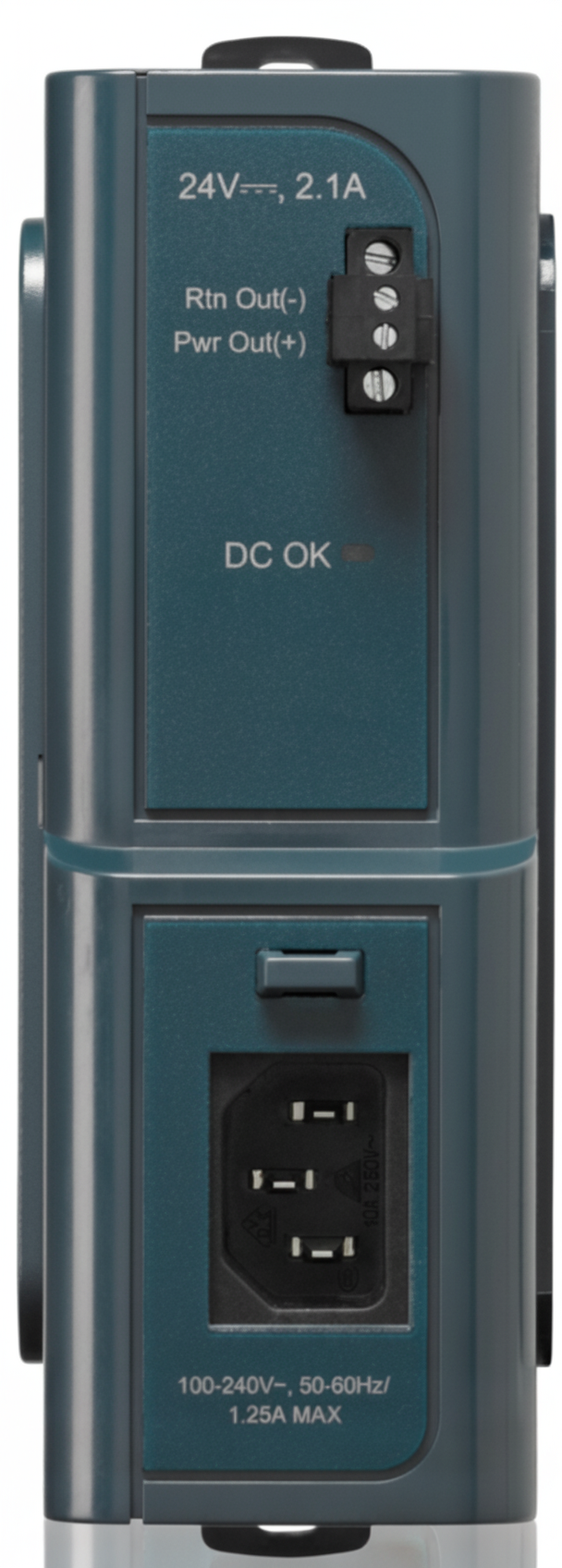

Cisco PWR-IE50W-AC-IEC 50W Industrial AC-to-DC DIN-Rail Power Supply

Cisco PWR-IE50W-AC-IEC – Industrial DIN-Rail AC to DC Power Supply (IEC Connector)

Overview :

The Cisco PWR-IE50W-AC-IEC is a compact 50-watt DIN-rail mount AC-to-DC power supply designed for industrial Ethernet deployments. It is targeted at engineers specifying power modules for ruggedised switches, routers or gateways in factory-automation, rail, oil & gas or other demanding environments. The unit supports a wide AC input range of 100-240 V (90-264 V supported) at 50/60 Hz and produces a regulated 24 V DC output at up to 2.1 A, giving a full 50 W power capability. Operating from –20 °C to +70 °C without derating and featuring an IP20 enclosure, the module is suitable for DIN-rail cabinets and control panels with standard IEC 60320 C14 inlet connectivity. It forms part of Cisco’s industrial DIN-rail power supply series, making it compatible with Cisco IE series switches and routers where compact AC-powered modules are required to support non-PoE loads or low-budget PoE scenarios.

Key Features :

• Compact size and DIN-rail mountable for cabinet use

• Standard IEC 60320 C14 inlet simplifies AC cabling

• 24 V DC output at 2.1 A delivering up to 50 W

• Wide AC input range 100-240 V (90-264 V supported)

• Ruggedised industrial spec: –20 °C to +70 °C, IP20 enclosure
