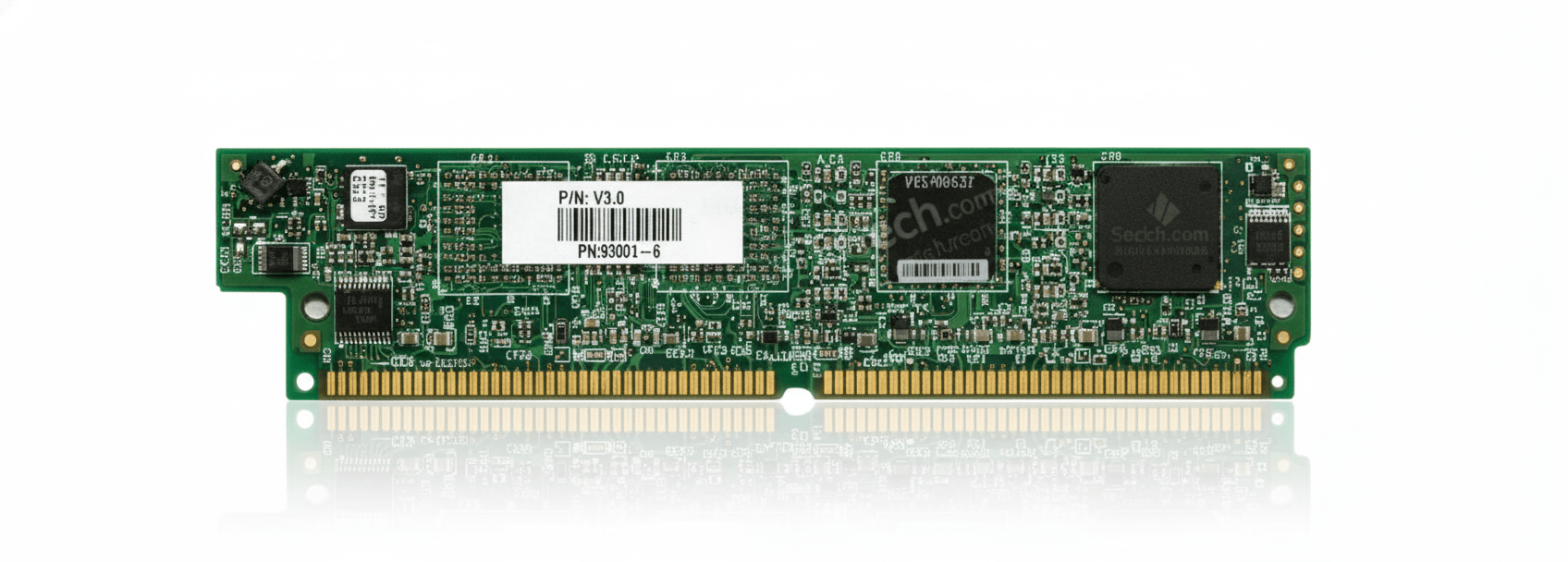

Cisco PVDM2-8 IT Networks Services and Solutions ITN
Roll over image to zoom in
31.50 AED37.80 AED (-17%)
Cisco PVDM2-8 IT Networks Services and Solutions ITN
Cisco PVDM2-8 IT Networks Services and Solutions ITN
Overview “
The Cisco ® High-Density Packet Voice Digital Signal Processor (DSP) Module (PVDM2) enables Cisco Integrated Services Routers to provide high-density voice connectivity, conferencing, and transcoding capabilities in Cisco IP Communications solutions. Cisco Integrated Services Routers provide enterprises and service providers with a toll bypass solution by connecting their existing telephony equipment (such as private branch exchanges [PBXs], key systems, analog telephones, and fax machines) to a toll-free data network and eventually migrating customers to Cisco Unified Communication Architecture for Voice, Video and Integrated Data IP telephony solutions.
The high-density packet voice DSP modules are available in five versions: PVDM2-8, PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64 (Figure 1). Tables 1 and 2 show the number of voice channels and codecs that each PVDM2 module supports.
Specification “
| DSP | • Texas Instruments TNETV2510GGW for PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64
• Texas Instruments TNETV2505GGW for PVDM2-8 |
| DSP CPU Clock | • 200 MHz for TNETV2510GGW
• 175MHz for TNETV2505GGW |
| DSP External Memory | 128-megabit synchronous dynamic RAM for each DSP (for both TI 2510 and TI 2505) |
| Interface | 80-pin SIMM interface |
|
Features |
|
| Echo Cancellation | Software echo cancellation compliant with ITU-I G.168, with 64-ms tail coverage |
|
Approvals and Compliance |
|
| Safety | • IEC 60950 (worldwide) and AS/NZS 3260 (Australia and New Zealand)
• CAN/CSA-C22.2 No. 60950 (Canada) and GB4943-95 (People’s Republic of China) • EN60950 (CENELEC; includes EU and EFTA) • SS337 (Singapore; PSB approval), NOM-019-SCFI-1998 (Mexico), and UL 60950 3rd edition (United States) |
| Homologation | Platform dependent |
| Mean Time between Failure (MTBF) | System dependent |
|
EMC |
|
| CISPR22, Class B | Emissions |
| EN55022, Class B | Emissions |
| CFR47, Part 15, Subpart B, Class B | Emissions |
| EN61000-3-2 | Harmonics |
| EN61000-3-3 | Flicker |
| CISPR24 | Immunity |
| EN 55024 | Immunity |
| EN50082-1 | Immunity |
| EN61000-3-2 | Harmonics |
| EN 61000-3-3 | Flicker |
| EN 61000-4-2 | Electrostatic discharge (ESD) |
| EN 61000-4-3 | Radio frequency (RF) fields |
| EN 61000-4-4 | EFT |
| EN 61000-4-5 | Surge |
| EN 61000-4-6 | Conducted RF |
| EN 6100-4-8 | Power-frequency magnetic fields |
| EN 61000-4-11 | Voltage dips, sags, and interruptions |
Additional information
| Weight | 6.2 kg |
|---|---|
| Dimensions | 41.9 × 44.5 × 4.4 cm |
| Brand | Cisco |
