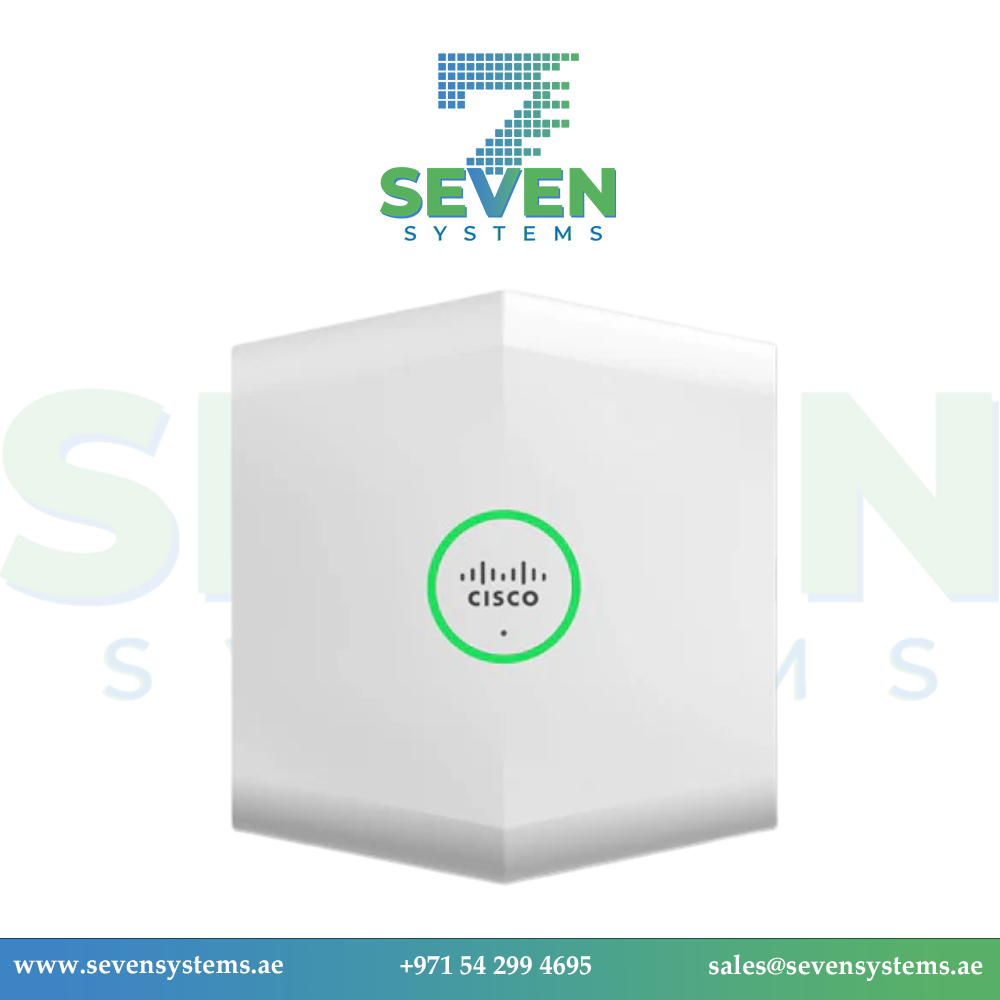

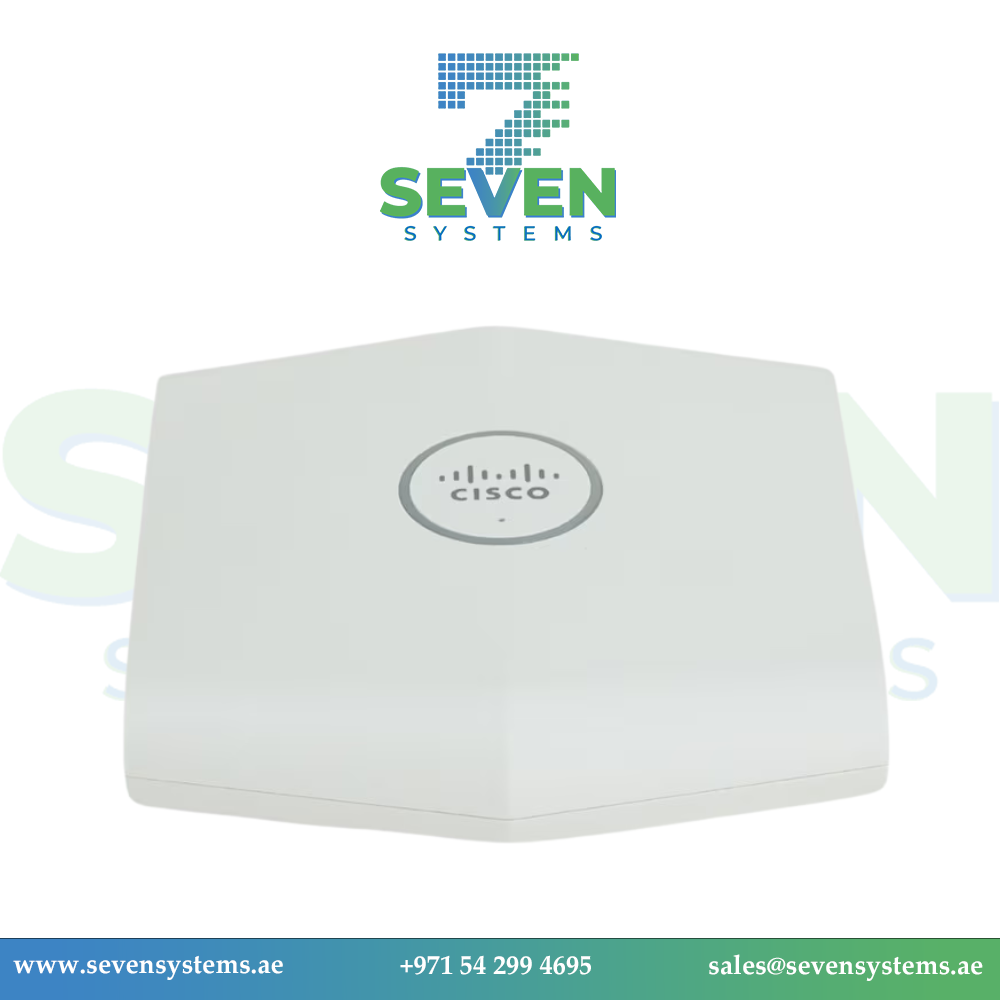

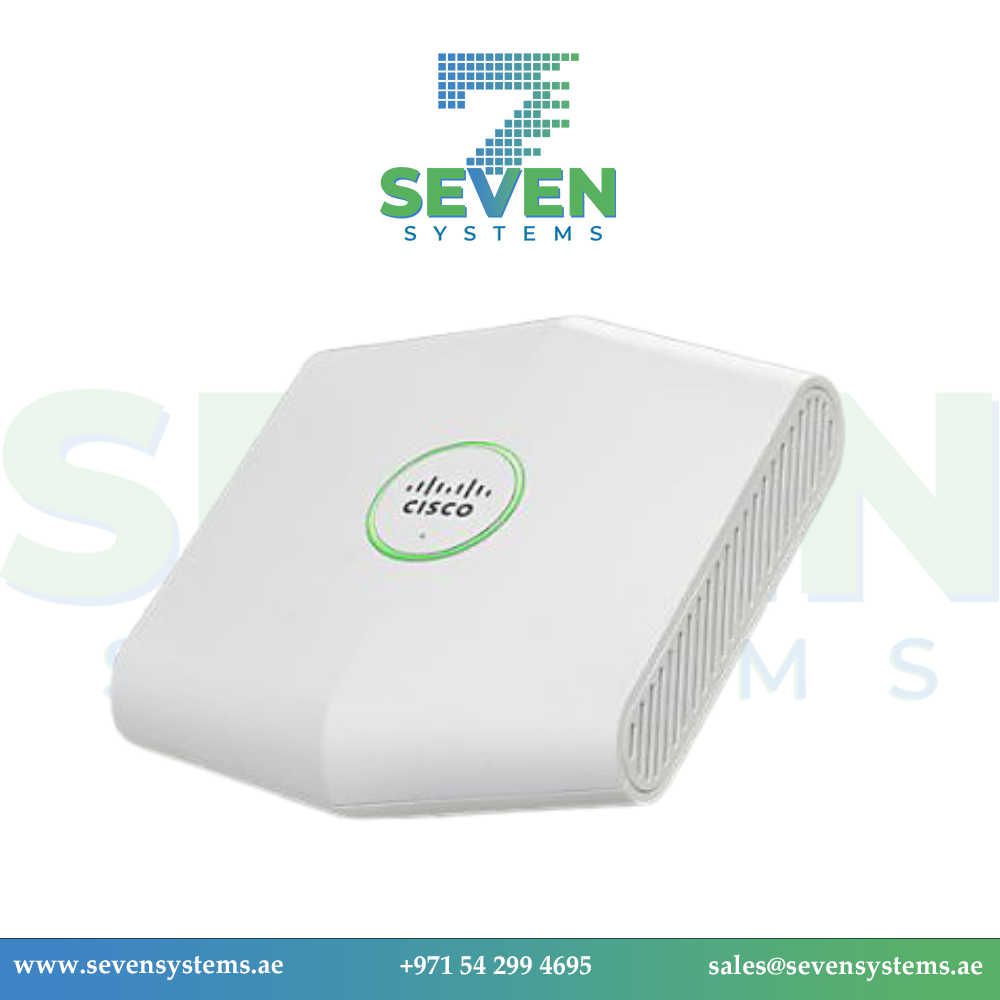

Cisco Meraki MT15‑HW‑N – Indoor Air Quality Sensor with CO₂, PM₂.₅ & Bluetooth 4.2 Low Energy
912.45 AED943.95 AED (-3%)
Cisco Meraki
MT15‑HW‑N Indoor Air Quality Sensor with CO₂, PM₂.₅ & Bluetooth 4.2 Low Energy
The Cisco Meraki MT15 is a cutting-edge indoor air quality sensor designed to monitor environmental health in classrooms, offices, and shared indoor spaces. It provides real-time data on CO₂ levels, particulate matter (PM₂.₅), temperature, humidity, volatile organic compounds (TVOCs), and noise levels. The MT15 features an intuitive LED ring that delivers instant air quality indicators, while IT and facilities teams can receive automatic alerts to address conditions proactively. With seamless Bluetooth connectivity to Meraki gateways and dual power options, the MT15 is a secure and scalable solution for modern building management.
Features :
The MT15 offers advanced sensing capabilities in a sleek, tamper-resistant housing that supports both wall and ceiling flush-mount installations. It connects via Bluetooth 4.2 Low Energy to Meraki MR access points or MV smart cameras for secure, wireless data transmission to the Meraki cloud. Power can be delivered using either USB-C or standard PoE (802.3af), offering flexible deployment options.
Advanced Options :
Sampling rates are tailored for accuracy: CO₂, temperature, and humidity are measured every 30 seconds; TVOCs every 3 seconds; PM₂.₅ every second; and noise levels every 5 seconds. The device automatically uploads environmental data every 20 minutes or upon crossing predefined thresholds. IT administrators can configure alerts, analyze trends, and export data using the Meraki Dashboard, APIs, or MQTT. Security is built in through Cisco’s Trust Anchor for secure firmware and BLE encryption, ensuring data integrity. The LED indicator ring can be customized to show the current status of any chosen metric—providing immediate, intuitive feedback in any environment.
Product Key Features
-
Monitors CO₂, PM₂.₅, TVOC, temperature, humidity, and ambient noise
-
Wireless connection to Meraki MR or MV gateways via Bluetooth 4.2
-
Real-time visual LED indicator ring, customizable to metric thresholds
-
Dual power options: USB-C or PoE (802.3af)
-
Secure communications with BLE encryption and Cisco Trust Anchor
-
Flush wall or ceiling mount with tamper-resistant design
-
Cloud-managed via Meraki Dashboard with alerting and data export options
-
Compatible with APIs, MQTT, and third-party integrations
Reliability & Performance :
The MT15 is engineered for accurate and dependable performance in indoor commercial and educational environments. It operates across a wide range of temperatures (0°C to 55°C) and humidity levels (0–95% RH), making it suitable for most facilities. Its robust sensor suite allows precise tracking of indoor air quality, helping organizations meet environmental safety standards and enhance occupant comfort. With real-time alerting and 24/7 data reporting, building managers can take immediate action on poor air quality indicators. The secure cloud-based platform ensures data availability, firmware updates, and remote device management—all without the need for complex onsite configurations.
Key Features :
-
Sensors: CO₂, PM₂.₅, TVOC, temperature, humidity, and noise
-
Connectivity: Bluetooth 4.2 LE
-
LED Indicator: Customizable color ring
-
Power: USB-C (5 VDC, 0.2 A) or PoE (802.3af)
-
Sampling: 1–30 second intervals depending on metric
-
Reporting: Every 20 minutes or on threshold events
-
Mounting: Wall or ceiling, flush-mount, tamper-resistant
-
Security: BLE encryption, Cisco Trust Anchor secure firmware
-
Management: Cloud-based with alerts, exports, APIs, and MQTT support
Specifications:
| Specification | Details |
|---|---|
| Model Number | MT15-HW-N |
| Sensors | CO₂, PM₂.₅, TVOC, temperature, humidity, ambient noise |
| Wireless Connectivity | Bluetooth 4.2 LE (2.4–2.4835 GHz) |
| Power Options | USB-C (5 V, 0.2 A) or PoE (802.3af – power only) |
| Dimensions (L×W×H) | 115 × 125 × 33.5 mm |
| Weight | 216 g (7.6 oz) |
| Operating Conditions | 0 to 55 °C; 0 to 95% RH |
| Sampling Intervals | CO₂/temp/humidity: 30 s; TVOC: 3 s; PM₂.₅: 1 s; noise: 5 s |
| Reporting Frequency | Every 20 minutes or when thresholds are exceeded |
| Visual Indicator | Configurable multi-color LED ring |
| Mounting Style | Wall or ceiling, flush-mount with tamper resistance |
| Security Features | Bluetooth encryption, Cisco Trust Anchor, heat-sealed firmware |
| Cloud Management | Via Meraki Dashboard; supports alerts, APIs, webhooks, and MQTT |
| Data Export Options | CSV, XLS, API, MQTT |
| Warranty | 3-Year Limited Hardware Warranty |
Additional information
| Weight | 0.216 kg |
|---|---|
| Dimensions | 11.5 × 12.5 × 3.35 cm |
| Brand | Cisco |
