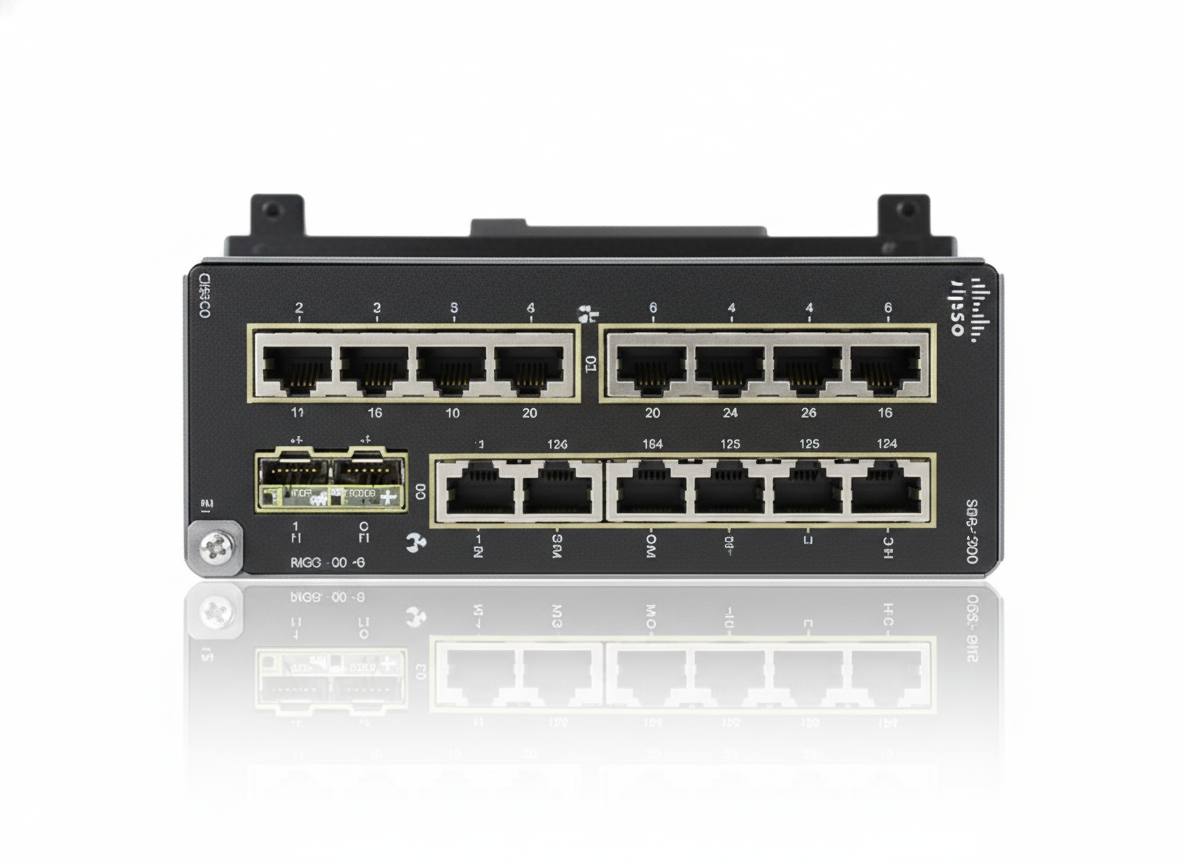

Cisco IEM-3300-14T2S – Expansion Module for IE 3300 Rugged
2,173.50 AED2,181.90 AED (-0%)
Expansion module: 14 Gigabit RJ-45 copper ports + 2 SFP fibre ports for Cisco IE 3300 Rugged Series.
Cisco IEM-3300-14T2S – Expansion Module for IE 3300 Rugged Series in Dubai
Overview
The IEM-3300-14T2S is an expansion module specifically designed for the Cisco IE 3300 Rugged Series switches. It adds 14 additional 10/100/1000 RJ-45 copper ports plus 2 SFP fibre ports to compatible base units, enabling expanded port density in constrained industrial DIN-rail or wall-mount network setups. This module suits deployments in manufacturing floors, warehouse automation, or outdoor kiosks where you need more Gigabit copper access and fibre uplink through a modular approach.
Key Features
-
14 additional Gigabit RJ-45 copper ports to scale device access without replacing the core switch.
-
2 SFP fibre uplink ports for flexible fibre connectivity or uplink to aggregation/network core.
-
Ruggedised form-factor matching the IE 3300 Rugged Series: DIN-rail compatible, wide temperature ranges.
-
Integrates seamlessly into modular architecture of IE 3300 series, offering future-proof port expansion.
-
Compact footprint and low incremental power draw make it suitable for dense edge enclosures.
Specifications
| Specification | Detail |
|---|---|
| Brand | Cisco |
| Part Number | IEM-3300-14T2S |
| Product Type | Expansion Module for IE 3300 Rugged Series |
| Port Configuration | 14 × 10/100/1000 RJ-45 copper + 2 × SFP fibre ports |
| Operating Temperature | -40 °C to +75 °C |
| Power Consumption | ~15 W typical |
| Dimensions (inches/cm) | 6.0″ H × 3.4″ W × 5.3″ D (≈ 15.2 × 8.6 × 13.5 cm) |
| Weight (lbs/kg) | ~2.06 lb (≈ 0.93 kg) |
| Mounting Type | DIN-rail (modular module for IE 3300) |
Additional information
| Weight | 0.93 kg |
|---|---|
| Dimensions | 13.5 × 8.6 × 15.2 cm |
| Brand | Cisco |
