CP‑8800‑A‑KEM‑3PC‑N Audio Key Expansion Module for Cisco 8800 Series IP Phones

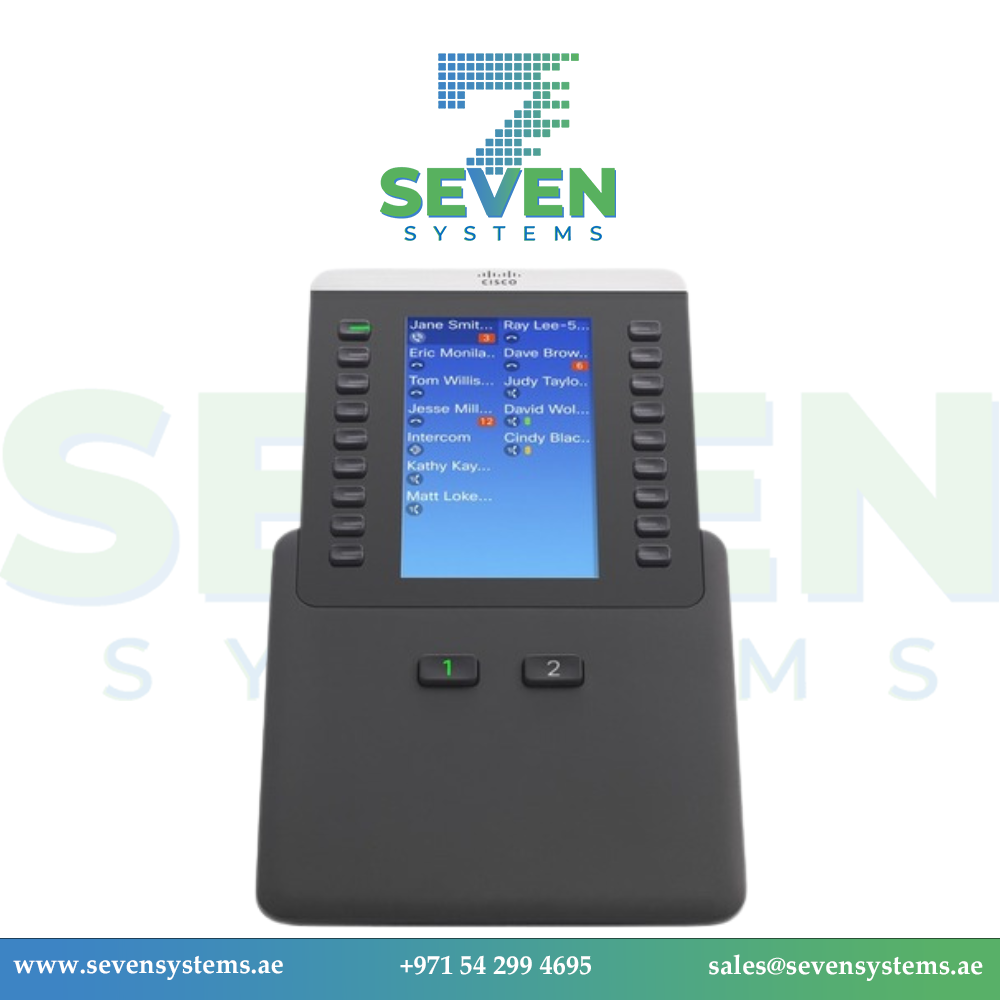

The Cisco CP‑8800‑A‑KEM‑3PC‑N is a sophisticated audio key expansion module designed to enhance the functionality of Cisco 8851, 8861, and 8865 IP phones. Ideal for receptionists, administrative staff, and power users, this accessory adds 14 programmable LED line and feature keys—plus a page button for a second set of 14—for a total of 28 additional keys. Featuring a backlit color LCD display, it provides intuitive visual feedback on line status with green/red/amber indicators. Powered via the host phone using PoE, it installs seamlessly via a spine connector and desk stand. This module offers a cost-effective way to boost call-handling capacity and productivity within enterprise and SMB environments.
Features :

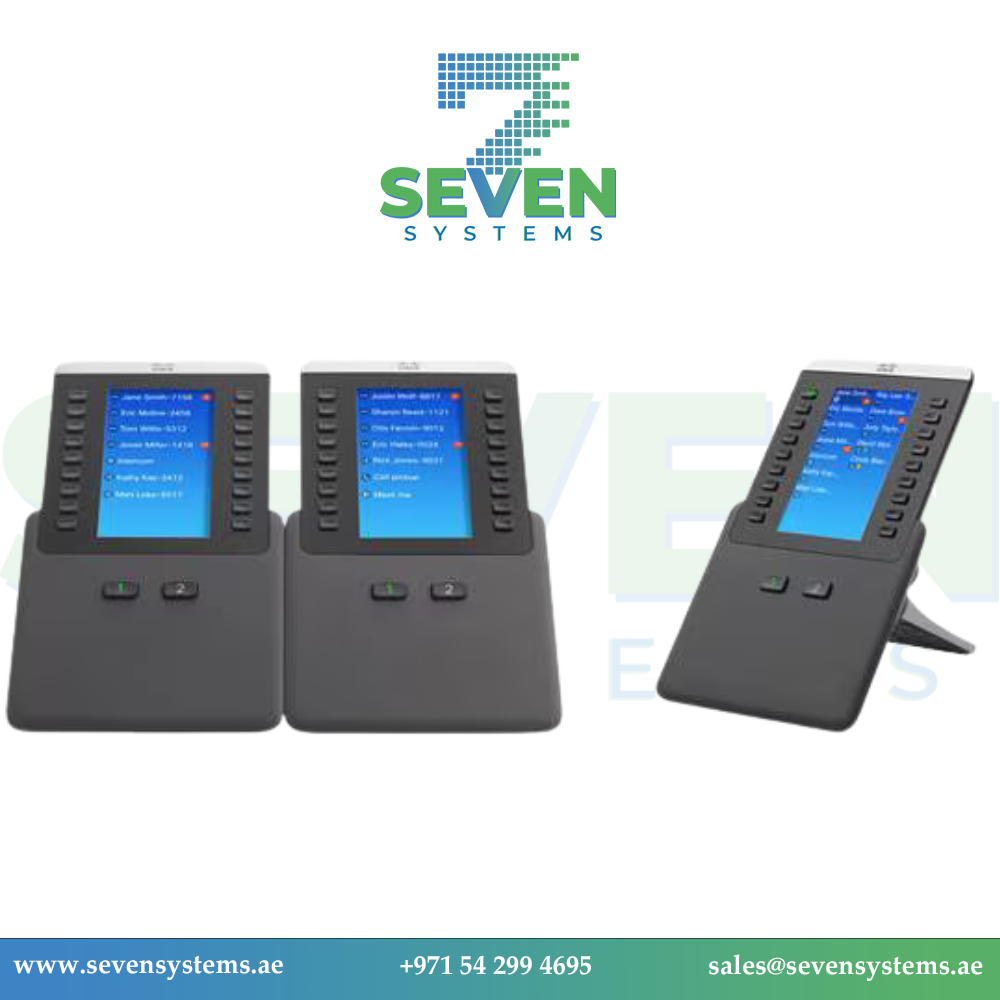

The CP‑8800‑A‑KEM‑3PC‑N integrates smoothly with Cisco 8800 Series IP phones, enabling users to access up to 28 programmable soft keys directly from the module, which appears as two pages of 14 keys each . Its vivid color LCD display ensures easy readability and supports brightness adjustment via phone menu settings . The system supports connecting up to two modules on a Cisco 8851 and three on a 8861/8865, allowing extensive customization for large-volume call environments
Advanced Options :
Installation is simple: connect using the included spine connector and secure with the foot stand. The module draws power through PoE (802.3at), although additional power supplies may be required when multiple units are connected. Ideal for busy front desks, executive offices, or contact center environments, this expansion module ensures your IP phone functions as a powerful multi-line console without additional desk clutter.
Product Key Features
-
Adds 14 programmable LED keys + 14 via page key (total 28)
-
Backlit color LCD display with adjustable brightness
-
Illuminated line-status indicators for easy monitoring
-
Supports up to 2 modules on 8851, 3 on 8861/8865
-
Powered via PoE, no extra power adapters needed
-
Includes spine connector, desk stand, and screws
Reliability & Performance :
Built to match Cisco’s high standards for enterprise telephony, the CP‑8800‑A‑KEM‑3PC‑N delivers reliable performance in high-use environments. The durable housing and connectors ensure stable operation under continuous use. Power management is intelligent—powered via PoE, the module automatically enters low-power mode when the host phone sleeps, conserving energy. Note: when more than one module is connected to 8861/8865 phones, fast‑charging USB capability may be disabled unless you use UPoE or an auxiliary power cube. The module is also firmware‑aware: it requires host phone firmware 11.2(3) or later to enable full key and display functionality
Key Features :
-
14 programmable LED keys + page-switch to 28 total
-
Color LCD display with brightness control
-
Line-status illumination (idle, in-use, ringing)
-
Host-phone powered via PoE
-
Supports 2 modules on 8851, 3 on 8861/8865
-
Easy installation with spine connector
-
Energy-efficient sleep mode
Specifications:
| Specification | Details |
|---|---|
| Model Number | CP‑8800‑A‑KEM‑3PC‑N |
| Product Type | Audio Key Expansion Module |
| Compatible Phones | Cisco 8851, 8851NR, 8861, 8865 |
| Programmable Keys | 14 physical + 14 via page button = 28 total |
| Display | Backlit color LCD, adjust via host phone menu |
| Power Source | Powered via host phone PoE (802.3at); others may need power cube |
| Supported Modules | 2 on 8851; 3 on 8861/8865 |
| Installation | Spine connector & desk stand; includes screws |
| Dimensions | ~9″ × 5″ × 1.6″ (approx. per module) |
| Weight | ~0.5 kg |
| Power Consumption | ~5 W per module, sleeps with host phone |
| Firmware Requirement | Host phone firmware ≥ 11.2(3) |
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 19.69 × 10.8 × 1.91 cm |
| Brand | Cisco |
