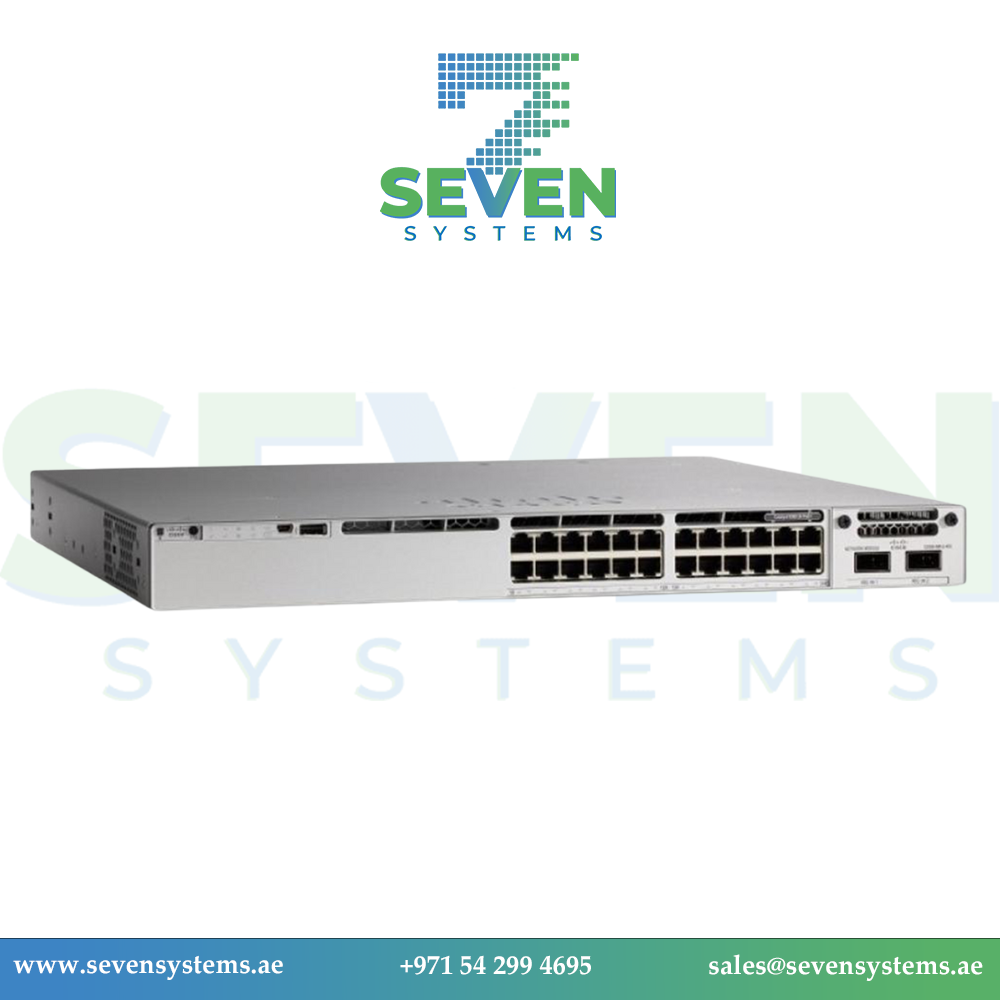

Cisco CBS220-16P-2G Business 220 Series 18-Port Gigabit Smart Switch PoE+
Please fill the form to get price quote.
Cisco
CBS220-16P-2G
Business 220 Series 18-Port Gigabit Smart Switch PoE+
The Cisco CBS220-16P-2G is a smart, cost-effective, and reliable switch designed to meet the networking demands of small to medium-sized businesses. As part of Cisco’s Business 220 Series, this 18-port Gigabit switch combines powerful features with simplified management to enable secure connectivity and efficient network operation. With 16 PoE+ ports and 2 combo uplink ports, the CBS220-16P-2G provides flexible and scalable performance for growing networks. It’s perfect for businesses looking for essential Layer 2 switching with advanced security and Power over Ethernet for devices like IP phones, access points, and surveillance cameras.
Features :
The Cisco CBS220-16P-2G smart switch delivers an optimal balance between performance, manageability, and affordability. Designed with 16 PoE+ ports capable of delivering up to 100W total power, it allows for seamless integration of power-hungry devices without the need for additional electrical infrastructure. The two combo Gigabit SFP/RJ-45 uplinks ensure high-speed backbone connectivity to servers or other switches.
Advanced Options :
This switch features an intuitive web user interface that enables quick configuration and monitoring, ideal for administrators without deep networking expertise. It also supports VLANs, QoS, link aggregation, and static routing, giving businesses the control they need over their traffic. Additionally, it supports energy-saving features such as Energy Efficient Ethernet (IEEE 802.3az), helping reduce power consumption without compromising performance.
Product Key Features
-
16 Gigabit Ethernet PoE+ ports with 100W total power budget
-
2 Gigabit combo uplink ports (SFP/RJ-45)
-
Web-based smart management interface
-
Advanced Layer 2 features: VLANs, QoS, link aggregation
-
Compact, rack-mountable metal chassis
-
Fanless design for silent operation
Reliability & Performance :
The CBS220-16P-2G is built for 24/7 operation in demanding business environments. Its fanless design ensures silent performance, making it suitable for office spaces and retail deployments. The robust PoE+ power budget of 100W simplifies device deployment, reducing installation costs and cabling clutter. Built with Cisco’s renowned quality, it offers solid Layer 2 performance and traffic segmentation for enhanced network security and efficiency. With support for advanced traffic prioritization, loop detection, and cable diagnostics, this switch ensures uninterrupted service and easy troubleshooting. The intuitive management dashboard helps small businesses control their network with ease, offering the performance and flexibility needed to support today’s bandwidth-intensive applications like VoIP and HD video surveillance.
Key Features :
-
16 x Gigabit PoE+ ports
-
2 x combo uplink ports (RJ-45/SFP)
-
100W PoE power budget
-
Layer 2 smart switching
-
Web-based interface for easy management
-
Fanless for quiet operation
Specifications:
Specification | Details |
---|---|
Model Number | CBS220-16P-2G |
Product Type | Smart Managed Switch |
Total Ports | 18 (16 x PoE+ Gigabit, 2 x combo uplinks) |
PoE Budget | 100 Watts |
Switching Capacity | 36 Gbps |
Forwarding Rate | 26.78 Mpps |
Layer Support | Layer 2 |
Management | Web-based GUI |
Form Factor | Rack-mountable |
Dimensions | 1.73 x 10.6 x 10.1 in (H x W x D) |
Weight | 4.4 lbs (approx.) |

Additional information
Weight | 3.03 kg |
---|---|
Dimensions | 44 × 20.3 × 4.4 cm |
Brand | Cisco |
