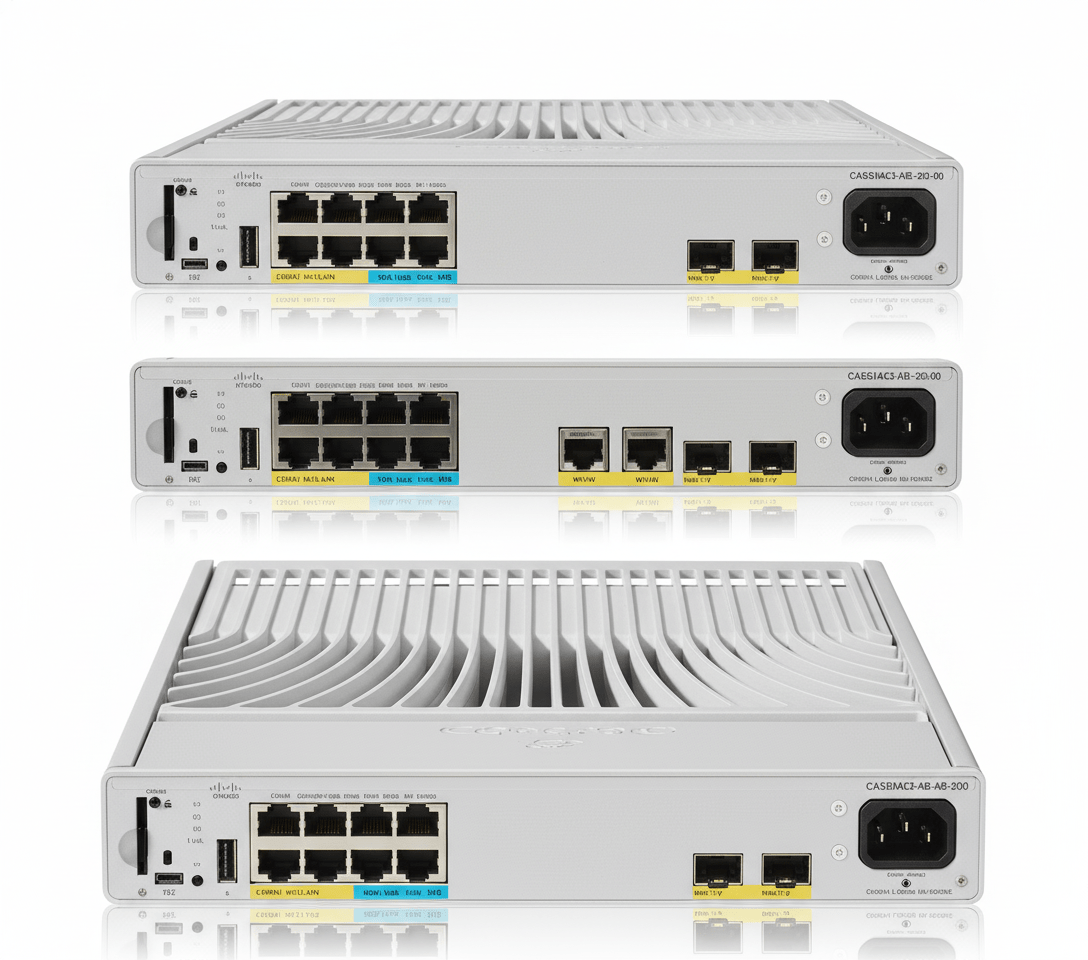

Cisco C9200CX-12T-2X2G-E Compact 12-Port 1G Access Switch
Roll over image to zoom in
1,316.70 AED1,323.00 AED (-0%)
Compact 12-port 1G fanless access switch with 2x10G uplinks
Cisco C9200CX-12T-2X2G-E Compact 12-Port 1G Access Switch
Overview
The Cisco C9200CX-12T-2X2G-E is a compact, fanless access switch designed for branch offices, campus edge, or small environments where space and noise levels are critical. It provides 12 x 10/100/1000BASE-T downlink ports along with 2 x 10G SFP+ uplinks and 2 x 1G copper uplinks for flexible connectivity. This model operates quietly without internal fans, making it suitable for workspaces, classrooms, and smart buildings. It runs Cisco IOS XE and shares the same Catalyst 9200 software features found in larger campus switches, including Layer 2/3 capabilities, enhanced security, and automation through Cisco DNA Center integration.
Key Features
-
12 x 1G RJ-45 ports plus 2 x 10G SFP+ and 2 x 1G uplinks
-
Fanless, compact design for quiet deployments
-
Supports IEEE 802.3bt Class 6 PD and 80W external power
-
Runs Cisco IOS XE with full Catalyst 9200 feature set
-
Ideal for branch, edge, and small office environments
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cisco |
| Part Number | C9200CX-12T-2X2G-E |
| Product Type | Compact Access Switch |
| Downlink Ports | 12 x 10/100/1000BASE-T RJ-45 |
| Uplink Ports | 2 x 10G SFP+ fixed and 2 x 1G copper uplinks |
| Dimensions (H x W x D) | 4.4 cm x 26.9 cm x 16.5 cm |
| Weight | 1.86 kg |
| Fan | Fanless operation |
| Power Input | AC 100–277V or IEEE 802.3bt Class 6 PD |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.5 Mpps |
| MAC Address Table | 32,000 entries |
| VLANs Supported | Up to 4094 |
| Virtual Networks (SD-Access) | Up to 16 |
| Operating Temperature | 0°C to 45°C |
| Software | Cisco IOS XE |
Additional information
| Weight | 1.86 kg |
|---|---|
| Dimensions | 16.5 × 26.9 × 4.4 cm |
| Brand | Cisco |
