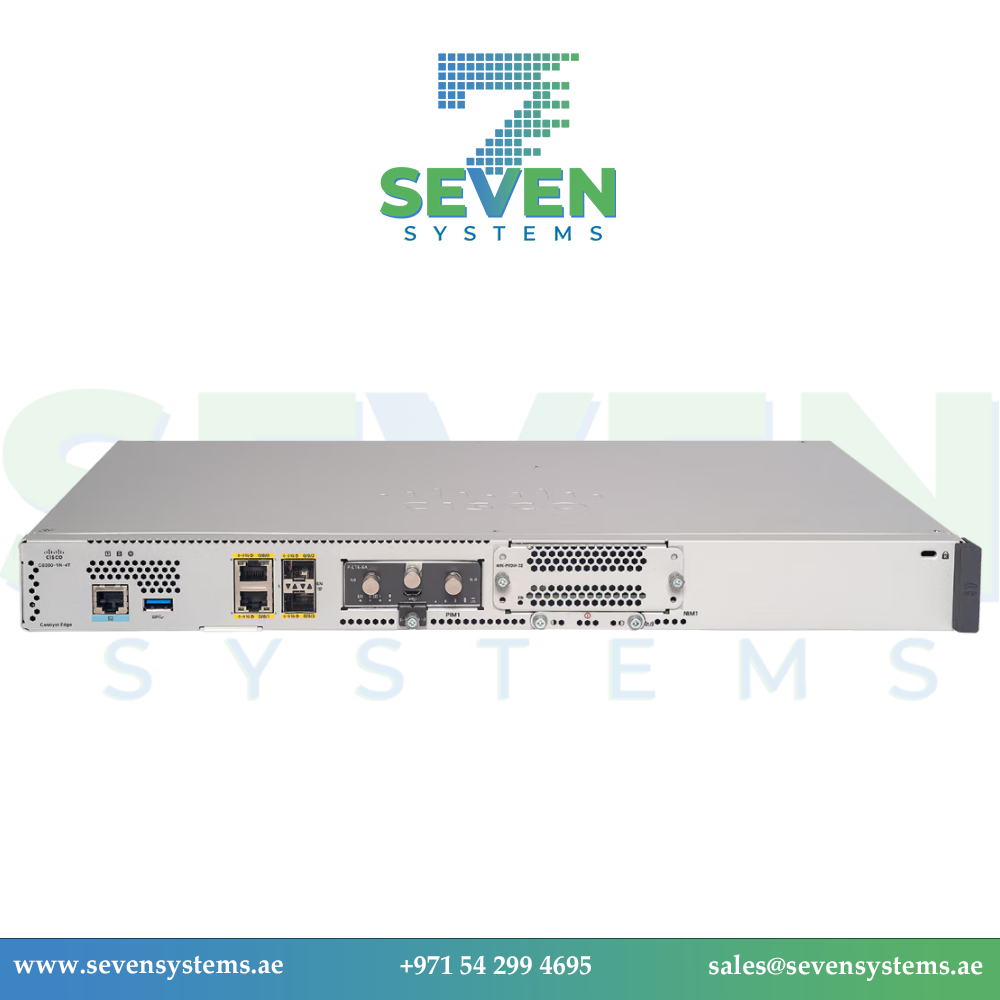

Cisco C8200‑1N‑4T‑N – Catalyst 8200 Series Edge Router – 1U Rack‑Mount – 4× 1 GbE WAN Ports + NIM Slot
5,216.40 AED5,301.45 AED (-2%)
Description
Cisco
C8200‑1N‑4T‑N – Catalyst 8200 Series Edge Router – 1U Rack‑Mount – 4× 1 GbE WAN Ports + NIM Slot
The Cisco C8200‑1N‑4T‑N is a rack‑mountable, high-throughput edge router optimized for modern branch office deployments. Ensuring secure, software-defined WAN (SD‑WAN), SASE readiness, and multilayer security, the C8200‑1N‑4T delivers exceptional performance in a compact 1U chassis. Featuring four onboard Gigabit WAN ports and expandable via a NIM slot, it supports up to 1 Gbps of IPsec VPN and 3.8 Gbps of routing capacity. Powered by an 8-core Intel x86 CPU, 8 GB RAM (upgradable), and modular storage, this platform is ideal for IT professionals migrating to cloud-first architectures and requiring robust branch connectivity.
Features :
Built on Cisco’s Silicon One-powered IOS XE platform, the C8200‑1N‑4T merges enterprise-grade routing, security, and SD‑WAN services into a single device. Its 1U rack-mount chassis houses four Gigabit Ethernet WAN interfaces (two RJ‑45, two SFP), a flexible NIM slot for additional modules (WAN, LAN, LTE, voice), and M.2 sockets supporting up to 600 GB NVMe storage. By default, the unit includes 8 GB DRAM (upgradable to 32 GB) and 16 GB boot-capable M.2 flash, with expandable options up to 32 GB M.2 USB or 600 GB NVMe—delivering ample resources for containerized apps, logging, and local analytics.
Advanced Options :
The router’s 8-core x86 processor supports hardware-accelerated IPsec via built-in QAT, enabling up to 1 Gbps encrypted tunnel performance. It also scales to 2,500 SD‑WAN overlay tunnels, making it suitable for midsize branches and distributed sites. The device supports both SD‑WAN and traditional IOS‑based deployments, with integrated security features like NG‑FW, IPS, URL filtering, AMP, and the ability to host containerized third-party security apps on-premises—for organizations requiring robust threat defense alongside remote capabilities.
Product Key Features
-
4 × 1 GbE WAN ports (2 × RJ‑45, 2 × SFP)
-
1 × NIM expansion slot for WAN/LTE/voice modules
-
8-core Intel x86 CPU with Dynamic Core Allocation
-
Default 8 GB DRAM (up to 32 GB), default 16 GB M.2 flash
-
Hardware-accelerated IPsec VPN throughput up to 1 Gbps
-
Up to 3.8 Gbps Layer‑3 forwarding performance
-
Supports 2,500 SD‑WAN overlay tunnels
-
Multi‑layer security: firewall, IPS, URLF, AMP
-
Compact 1RU form factor, rack-mountable
-
Trustworthy Solutions 2.0 security infrastructure
Reliability & Performance :
Engineered for always-on enterprise environments, the C8200‑1N‑4T delivers high availability and resilience in branches, retail, and edge use cases. Its multicore design enables flexible allocation: dynamically dividing cores for service planes or packet forwarding, ensuring optimal operations. With QAT-based IPsec encryption and large VPN capacity, the router keeps secure WAN tunnels performant. The modular architecture allows you to add WAN connectivity, LTE backup, voice interfaces, and increased security without replacing hardware. Storage flexibility—from 16 GB flash to 600 GB NVMe—supports local logging, analytics, and inspection workloads. Cisco’s IOS-XE software stack ensures feature-rich SD‑WAN/MPLS integration, containerized services, and full programmability via APIs. Backed by a trustworthy hardware anchoring system and comprehensive support, this device offers future-proofed edge routing and security in a compact, silent, rack-compatible chassis.
Key Features :
-
4 × 1 GbE WAN ports (2 RJ‑45, 2 SFP)
-
1 modular NIM slot (supports WAN, LTE, voice, LAN)
-
8‑core Intel x86 CPU, dynamic core allocation
-
Up to 32 GB DRAM and 600 GB M.2 NVMe storage support
-
1 Gbps hardware‑accelerated IPsec VPN
-
3.8 Gbps Layer‑3 routing capacity
-
2,500 SD‑WAN overlay tunnels
-
Integrated security services and container apps
-
Compact 1RU rack-mountable chassis
-
Trustworthy hardware security foundatio
Specifications:
| Specification | Details |
|---|---|
| Capacity | 500VA / 300W |
| Outlets | 8 Total (Battery + Surge) |
| Voltage | 120V |
| Specification | Details |
|---|---|
| Model Number | C8200‑1N‑4T‑N |
| Product Type | Edge Router (SD-WAN & Security Platform) |
| Onboard WAN Ports | 4 × 1 GbE (2 RJ‑45, 2 SFP) |
| Expansion Slot | 1 × Cisco NIM Module Slot |
| CPU | 8‑Core Intel x86 with Dynamic Core Allocation |
| Memory (DRAM) | 8 GB default, up to 32 GB |
| Flash / Storage | 16 GB M.2 flash default; upgradable to 32 GB USB or 600 GB NVMe |
| Max Routing Throughput | Up to 3.8 Gbps CEF forwarding |
| IPsec VPN Throughput | Up to 1 Gbps (hardware‑accelerated) |
| SD‑WAN Overlay Capacity | Up to 2,500 tunnels |
| Security Services | NG-FW, IPS, URLF, AMP; containerized 3rd-party apps |
| Dimensions (HxWxD) | ~1.72″ × 17.5″ × 9.7″ (44 × 445 × 247 mm) |
| Form Factor | 1U rack-mountable |
| Power Supply | Internal AC; optional PoE adapter |
| Software Platform | Cisco IOS XE (SD-WAN & Autonomous) |
| Hardware Security | Trust Anchor 2.0, integrity verification |
| Warranty | Limited Lifetime Hardware Warranty with Support |
Specification
Additional information
| Weight | 4.54 kg |
|---|---|
| Dimensions | 29.97 × 43.81 × 4.39 cm |
| Brand | Cisco |
