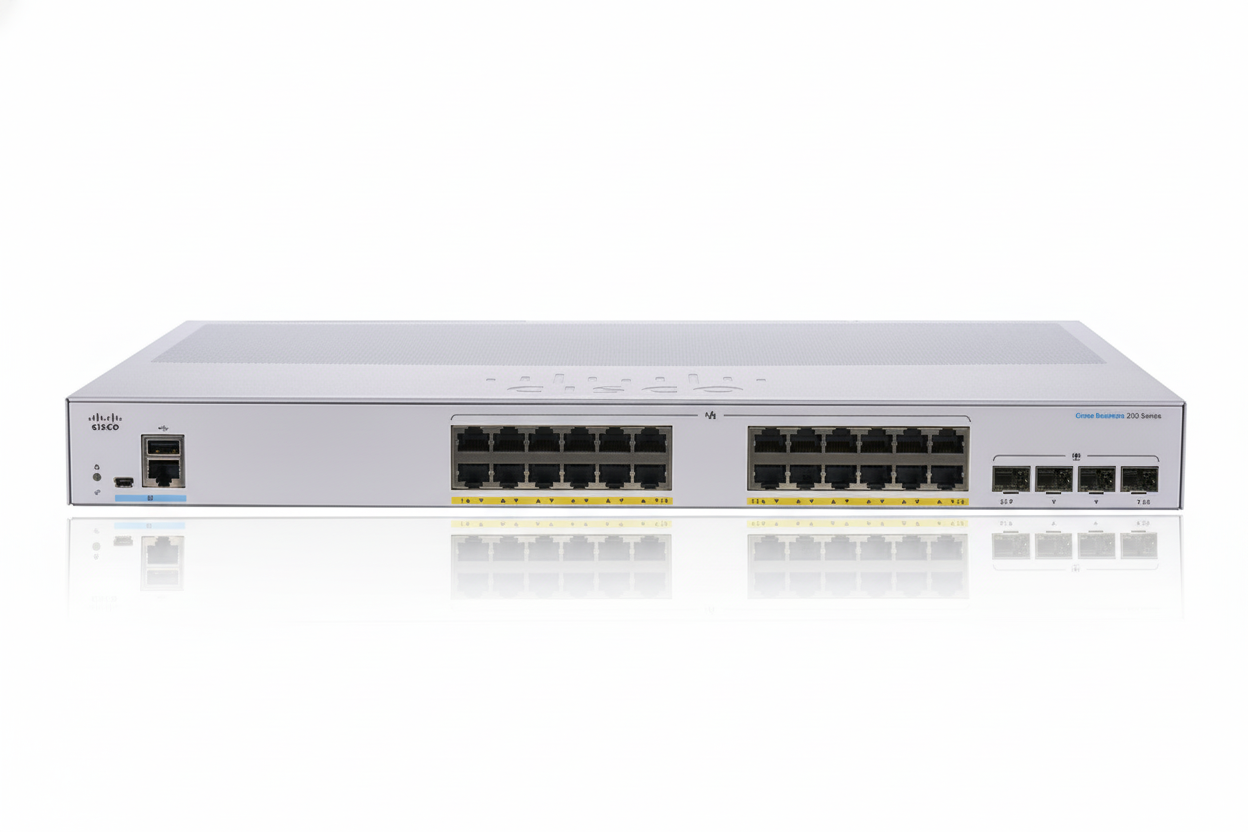

Cisco C1200-24FP-4X Gigabit PoE+ Access Switch
743.40 AED745.50 AED (-0%)
24-port Gigabit PoE+ access switch with 4 × 10 Gb uplinks
Cisco C1200-24FP-4X Gigabit PoE+ Access Switch
Overview
The Cisco C1200-24FP-4X is a 24-port 10/100/1000 Mbps PoE+ access switch with four 10 Gbps SFP+ uplinks, designed for small to medium business network deployments requiring high port density and power over Ethernet. It offers a total PoE budget of 375 W to power devices such as wireless access points, IP cameras, and VoIP phones while providing high-speed uplinks for aggregation. The switch fits into 1U rack-mount environments in wiring closets, branch/data-edge sites or campus workgroup zones. It supports management via Cisco Business Dashboard, web UI and SNMP, enabling remote monitoring and configuration.
Key Features
-
24×10/100/1000 BASE-T PoE+ ports with 375 W power budget
-
4×10 Gbps SFP+ uplink ports for high-speed aggregation
-
128 Gbps switching capacity and 95.23 Mpps forwarding rate
-
Supports IPv4/IPv6 static routing and L3 segmentation
-
USB-C front port, console RJ-45 and internal power supply
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cisco |
| Part Number | C1200-24FP-4X |
| Product Type | Gigabit Ethernet PoE+ Access Switch |
| Ports | 24×10/100/1000 BASE-T PoE+ |
| Uplink Ports | 4×10 Gbps SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Total PoE Power Budget | 375 W |
| Dimensions (W×D×H) | 44.5 cm × 34.5 cm × 4.4 cm (445 × 345 × 44 mm) |
| Weight | 4.6 kg |
| Power Input | 100-240 V AC, 50/60 Hz |
| Operating Temperature | –5 °C to 50 °C |
| Packet Buffer | 1.5 MB |
| MAC Address Table Size | 8,000 entries |
| CPU | Dual-core ARM 1.4 GHz |
| Memory (DRAM) | 1 GB DDR4 |
Additional information
| Weight | 4.6 kg |
|---|---|
| Dimensions | 34.5 × 44.5 × 4.4 cm |
| Brand | Cisco |
