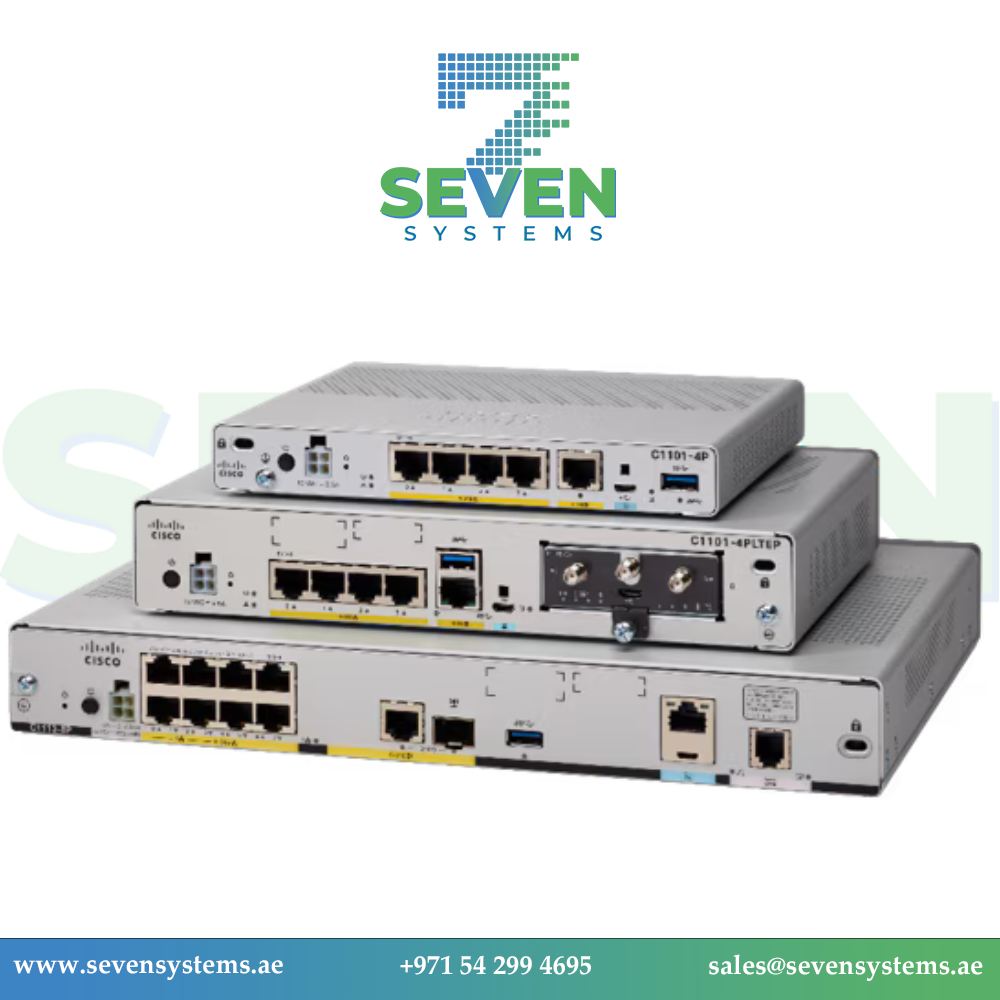

Cisco C1101‑4P‑N Integrated Services Router 1101 – 4‑Port Gigabit Ethernet Branch Router
2,052.75 AED2,098.95 AED (-2%)
Cisco
C1101‑4P‑N Integrated Services Router 1101 – 4‑Port Gigabit Ethernet Branch Router
The Cisco C1101‑4P‑N is a compact, high-performance branch office router that delivers enterprise-grade routing, security, and SD‑WAN capabilities in a small form factor. Equipped with four Gigabit LAN ports and one Gigabit WAN interface, this router is ideal for small offices, retail stores, and remote sites. Powered by Cisco IOS XE, it delivers robust firewall protection, VPN, QoS, and optional cellular backup—all in a silent, desktop or rack-mount capable design. With standard PoE options, USB console, and secure image booting, the C1101-4P-N streamlines connectivity and protects your network edge.
Features :
As part of Cisco’s 1000 Series ISR family, the C1101-4P-N is designed for compact branch deployments requiring secure access and reliable internet connectivity. The device integrates four Gigabit LAN ports to connect workstations, phones, or access points, with a fifth port dedicated as a high-speed WAN uplink. Built on the IOS XE operating system, the router supports advanced routing protocols (OSPF, BGP, RIP), rich security features (stateful firewall, secure boot, IPsec/Dynamic VPN, 802.1X), and SD-WAN for centralized control and policy enforcement
Advanced Options :
Connectivity is enhanced with a USB 3.0 console port and optional modular plug-ins (LTE, 5G, serial), enabling redundancy and remote resiliency. It offers up to 475 Mbps encrypted VPN throughput—well-suited for simultaneous voice, video, and data traffic in compact offices. With universal AC power and fanless cooling, the router operates silently and can be rack-mounted using optional kits.
Product Key Features
-
4 × Gigabit Ethernet LAN ports plus 1 × Gigabit WAN port
-
Cisco IOS XE with full routing (OSPF, BGP, RIP) and SD-WAN support
-
Stateful firewall, IPsec VPNs, TLS, and secure boot
-
USB 3.0 console and optional modular upgrades (LTE/5G/serial)
-
Supports 475 Mbps encrypted throughput
-
Compact, fanless design; desktop or rack mountable
Reliability & Performance :
The C1101‑4P‑N delivers enterprise-class performance in small footprints. The IOS XE platform ensures secure image booting and signed firmware, while SD-WAN enables dynamic path selection and traffic prioritization. The integrated firewall and VPN handle encrypted tunnels at up to 475 Mbps, ensuring secure connectivity for simultaneous voice, video, and data usage. Dual power options and modular cellular backup capability make it resilient in unreliable network conditions. With no fans, noise is minimized—suitable for retail counters or office desktops. Backed by Cisco’s support and a standard 1‑year warranty, the router offers long-term reliability for mission-critical applications.
Key Features :
-
Four 1 GbE LAN ports; one 1 GbE WAN port
-
Supports advanced routing (OSPF, BGP, RIP)
-
Stateless/Stateful firewall, IPsec VPN, TLS security
-
SD-WAN-ready with central policy provisioning
-
USB 3.0 console and optional plug-in modules
-
Up to 475 Mbps encrypted throughput
-
Silent, fanless design with desktop or rack mounting
-
Secure boot, signed firmware, 802.1X authentication
-
Universal AC power, low power consumption (~17 W)
Specifications:
| Specification | Details |
|---|---|
| Model Number | C1101‑4P‑N |
| Product Type | Branch Office Integrated Services Router |
| LAN Ports | 4 × Gigabit Ethernet |
| WAN Port | 1 × Gigabit Ethernet |
| Console | USB 3.0 Type A |
| Processing Power | Up to 475 Mbps IPsec VPN throughput |
| Operating System | Cisco IOS XE |
| Routing Protocols | OSPF, BGP, RIP, static routes |
| WAN Features | Stateful firewall, NAT, Zone-based, SD-WAN |
| Security | Secure boot, signed images, TLS, 802.1X authentication |
| Modular Slots | Supports optional LTE/5G/serial via USB or PIM |
| Power Consumption | ~17 W idle (non-LTE) |
| Power Supply | Universal 100–240 VAC |
| Cooling | Fanless, passive cooling |
| Physical Dimensions (H×W×D) | Approx. 1.1 × 7.5 × 6.0 in (27.9 × 190.5 × 152.4 mm) |
| Weight | ~1.9 lb (0.86 kg) |
| Mounting Options | Desktop or rack-mount kit |
| Warranty | 1-Year hardware warranty |
Additional information
| Weight | 0.86 kg |
|---|---|
| Dimensions | 22.94 × 32.26 × 4.45 cm |
| Brand | Cisco |
