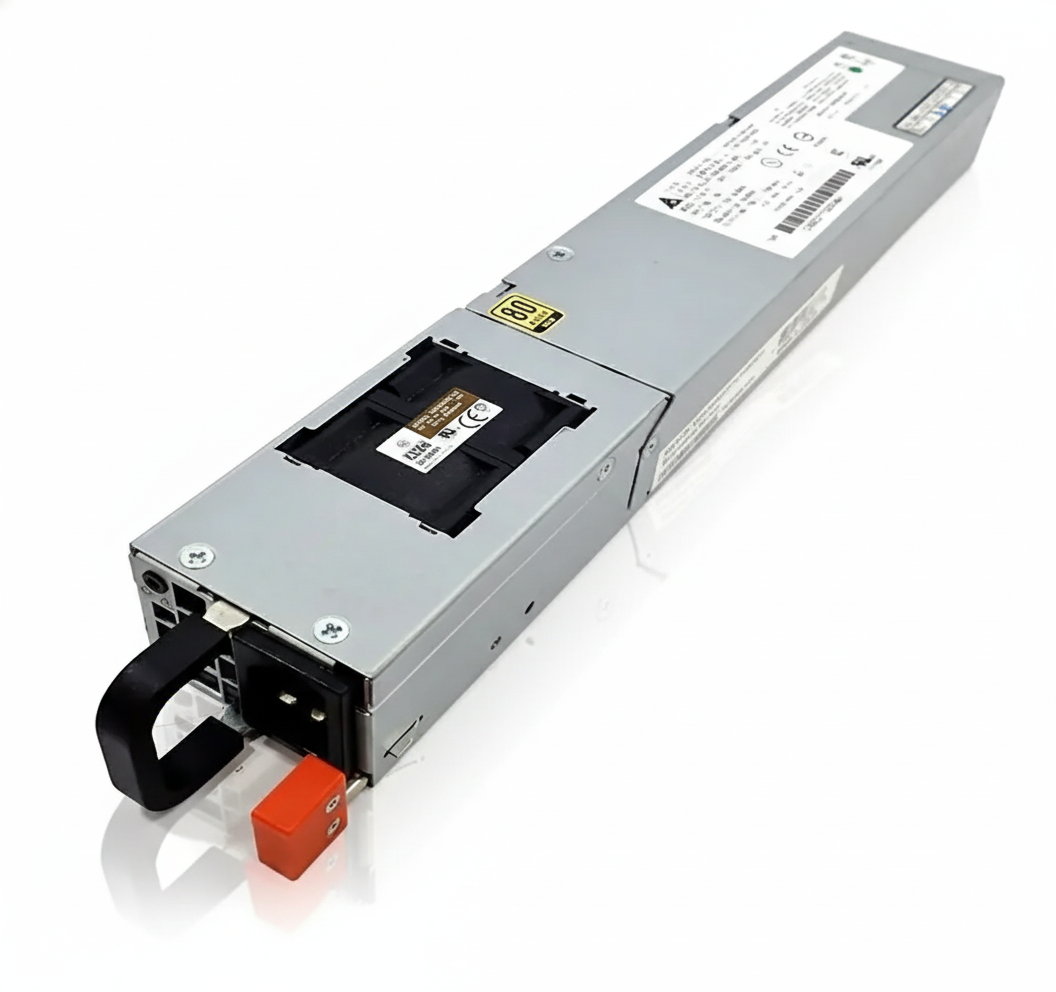

Cisco AIR-PSU1-770W 770W AC Hot-Plug Power Supply
Roll over image to zoom in
283.50 AED315.00 AED (-10%)
Cisco AIR-PSU1-770W is a 770W AC hot-plug power supply designed for Cisco controllers and UCS systems, offering high efficiency
Cisco AIR-PSU1-770W 770W AC Hot-Plug Power Supply
Overview
The Cisco AIR-PSU1-770W is a high-efficiency 770-watt AC hot-plug power supply designed for enterprise-grade Cisco controllers and server systems. It provides reliable power delivery with redundancy and hot-swap capabilities, ensuring minimal downtime during maintenance or upgrades. With wide AC input support, Platinum-level efficiency, and optimized thermal performance, this power supply is ideal for data centers, enterprise networks, and large-scale wireless deployments that demand consistent and efficient power.
Key Features
• 770W AC output capacity for enterprise networking and computing systems.
• Hot-plug, redundant design ensures continuous operation and system uptime.
• Supports wide input voltage range from 100 to 240V AC.
• Platinum-level energy efficiency reduces power loss and cooling requirements.
• Compatible with Cisco controllers and UCS series modular systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cisco |
| Part Number | AIR-PSU1-770W |
| Product Type | 770W AC Hot-Plug Power Supply |
| Output Power Capacity | 770W |
| Input Voltage Range | 100–120V AC / 200–240V AC |
| Input Frequency | 47–63 Hz |
| Maximum Input Current | 9.5A at 100V AC / 4.5A at 208V AC |
| Efficiency Rating | 80 PLUS Platinum |
| Output Voltage | 12V DC |
| Form Factor | Hot-plug / redundant module |
| Input Connector | IEC 320 C14 |
| Compatible Systems | Cisco Wireless Controllers and UCS C-Series Servers |
| Dimensions (L × W × H) | 34 × 17 × 16 cm |
| Weight | 1.50 kg |
| Environment | Indoor, enterprise rack systems |
| Operating Temperature | 0°C to 40°C |
| Compliance | RoHS, WEEE Certified |
Additional information
| Weight | 1.50 kg |
|---|---|
| Dimensions | 34 × 17 × 16 cm |
| Brand | Cisco |
