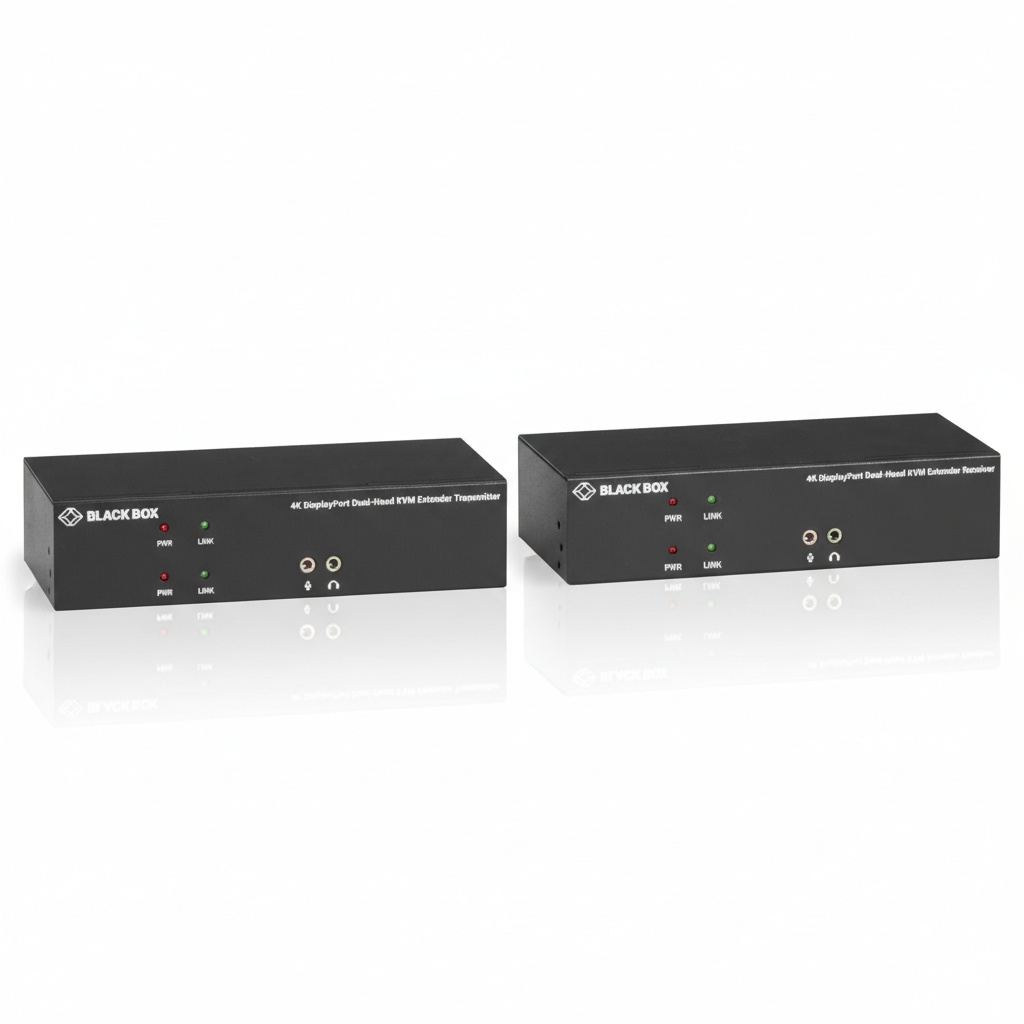

Black Box KVXLCDP-200 Dual-Head 4K DisplayPort KVM Extender over CATx
10,048.08 AED11,025.00 AED (-9%)
Key Features
- Dual-head DisplayPort 1.2 supports 4K UHD at 30Hz.
- Extends signals up to 100m over a single CAT5e/6 cable.
- Transparent USB 2.0 for HID and high-speed peripherals.
- Local video output on transmitter for dual-site monitoring.
Description
Black Box KVXLCDP-200 Dual-Head 4K DisplayPort KVM Extender over CATx in Dubai
Overview :
The Black Box KVXLCDP-200 is a professional-grade KVM extender kit designed for high-density environments where workstation security and noise reduction are critical. This solution enables the relocation of high-performance PCs or servers to a secure, climate-controlled server room while providing the operator with a seamless, dual-monitor 4K experience at the desk. By utilizing standard CATx (CAT5e/6/6A) cabling, the KVXLCDP-200 extends dual DisplayPort 1.2 video, USB 2.0, analog audio, and RS-232 signals up to 100 meters (328 feet).
Specifications :
| Brand | Black Box |
| Part Number | KVXLCDP-200 |
| Product Type | KVM Extender Kit (Transmitter/Receiver) |
| Video Interface | (2) DisplayPort 1.2 |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Extension Distance | 100 m (328 ft) over CAT5e/6/6A |
| USB Support | USB 2.0 Transparent |
| Audio | 3.5mm Stereo In/Out (Bidirectional) |
| Serial Extension | RS-232 (D-Sub 9-pin) |
| Power Supply | 5 VDC, 2A (External) |
| Operating Temperature | 0 to 50°C |
| Dimensions | 44 x 181 x 103 mm (per unit) |
| Weight | 0.6 kg (per unit) |
Specification
Additional information
| Weight | 0.38 kg |
|---|---|
| Dimensions | 8.3 × 18.0 × 4.4 cm |
