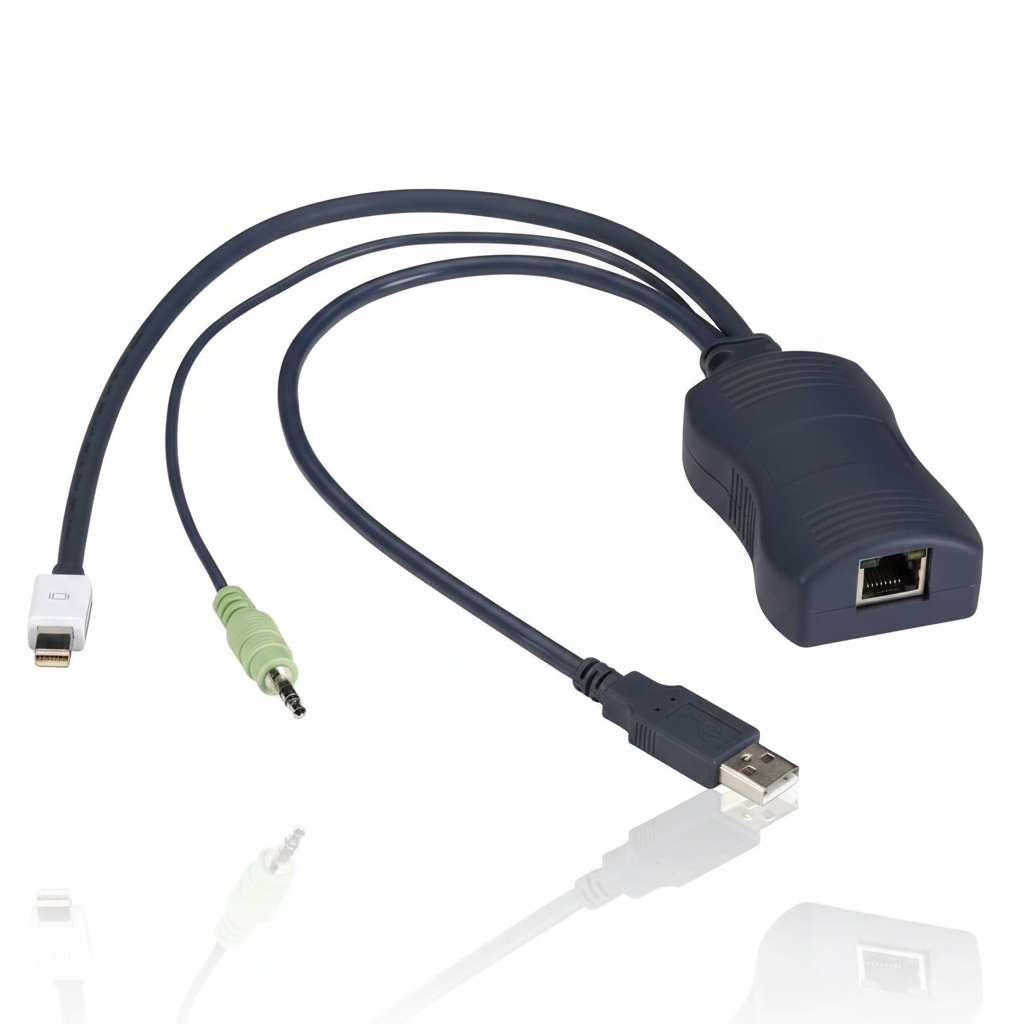

Black Box KV1409A ServSwitch CX Mini DisplayPort and USB SAM

KV1409A
Roll over image to zoom in
Click to open expanded view

1,922.83 AED2,415.00 AED (-20%)

In stock

Key Features

- Supports Mini DisplayPort video up to 1920 x 1200.
- Integrated USB and 3.5mm audio for full console control.
- Bus-powered design requires no external power supply.
- Compact CATx cabling reduces rack clutter significantly.

SKU: KV1409A Category: Tags: , , , , , , Brand:

Black Box KV1409A ServSwitch CX Mini DisplayPort and USB SAM in Dubai

Overview :

The Black Box KV1409A is a high-performance Server Access Module (SAM) designed to bridge the gap between modern Mini DisplayPort-equipped hardware and the ServSwitch CX KVM switching ecosystem. As data centers transition away from legacy VGA interfaces, the KV1409A provides a reliable, compact solution for integrating servers, workstations, and Mac systems into a centralized CATx-based management framework. This module is frequently deployed in high-density rack environments, broadcast studios, and edge computing sites where space optimization and cable management are critical.

By converting Mini DisplayPort video, USB keyboard/mouse signals, and 3.5mm analog audio into a single RJ-45 connection, the KV1409A eliminates the need for bulky, distance-limited KVM cables. It supports digital video resolutions up to 1920 x 1200, ensuring crisp image quality for administrative tasks. The module is entirely bus-powered via the host server’s USB port, removing the requirement for external power adapters at the rack level. Furthermore, it features integrated “keep-alive” technology, which maintains keyboard and mouse emulation even if the KVM switch is powered down or the CATx cable is disconnected, preventing server lockups and ensuring continuous uptime.

Specifications :

Brand Black Box
Part Number KV1409A
Product Type Server Access Module (SAM)
Video Interface Mini DisplayPort (Male)
Peripheral Interface USB Type A (Male)
Audio Interface 3.5mm Stereo Jack (Male)
Link Connector RJ-45 (Female)
Max Resolution 1920 x 1200 @ 60Hz
Power Source USB Bus Powered
Max Distance 50m (164 ft) with ServSwitch CX
Dimensions 89 x 28 x 48 mm (3.25″H x 1.1″W x 1.9″D)
Weight 0.1 kg (0.22 lbs)
Compatibility ServSwitch CX, CX Uno, CX Uno with IP
Operating Temp 0°C to 45°C (32°F to 113°F)

Additional information

Weight 0.45 kg
Dimensions 8.9 × 2.8 × 4.8 cm
