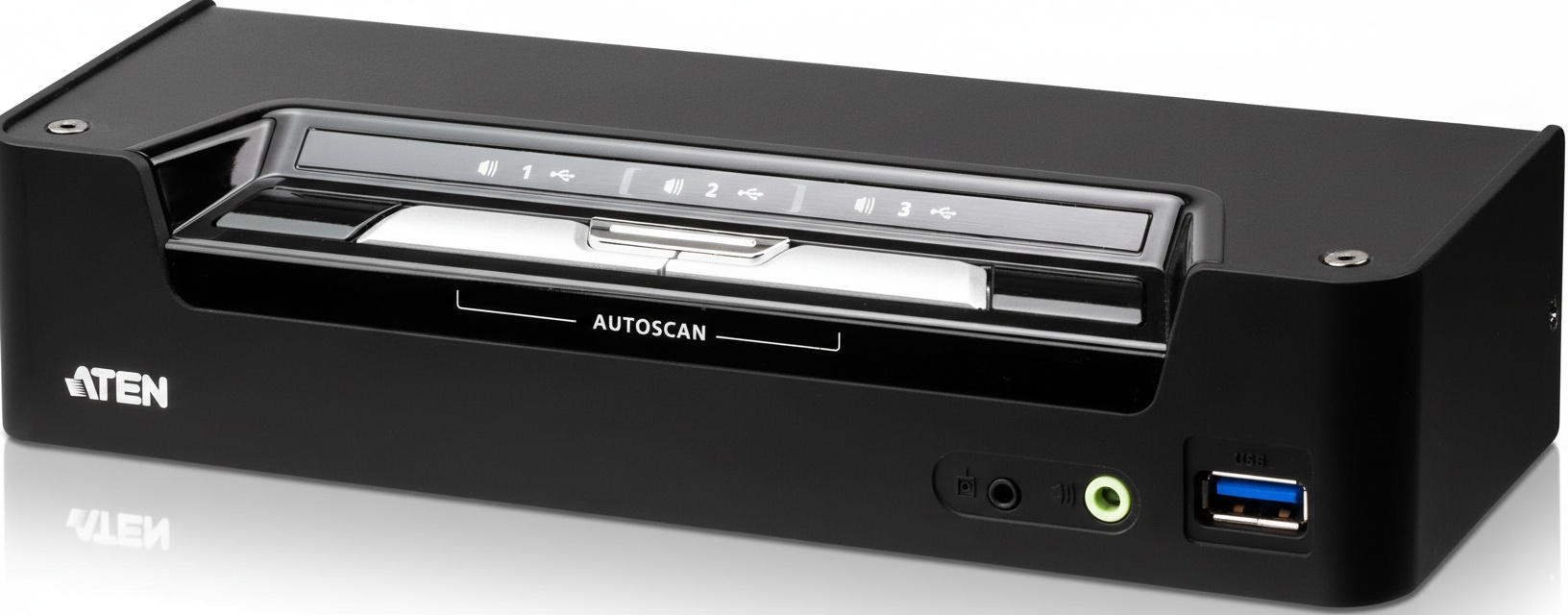

ATEN CS1953 – 3-Port USB-C DisplayPort Hybrid KVMP Switch

  • Brand: ATEN
  • SKU: CS1953
CS1953
Roll over image to zoom in
Click to open expanded view

1,981.04 AED2,625.00 AED (-25%)

In stock

Key Features

- Supports Cinema 4K resolution up to 4096 x 2160 @ 60Hz.
- Integrated USB-C Power Delivery 3.0 provides up to 60W.
- Built-in 2-port USB 3.1 Gen 1 hub with 5 Gbps transfer.
- Flexible switching via hotkeys, mouse, or remote selector.

SKU: CS1953 Category: Tags: , , , , , Brand:

ATEN CS1953 – 3-Port USB-C DisplayPort Hybrid KVMP Switch in Dubai

Overview :

The ATEN CS1953 is a professional-grade hybrid KVMP switch engineered to address the connectivity challenges of modern multi-platform workstations. In enterprise environments, such as financial trading floors, medical imaging suites, or creative studios, users frequently need to transition between high-performance desktop PCs and mobile USB-C devices like laptops or tablets. This switch facilitates that workflow by integrating two DisplayPort 1.2 inputs with a dedicated USB-C port that supports DisplayPort Alternate Mode.

Beyond standard peripheral sharing, the CS1953 functions as a high-speed productivity hub. It features a built-in 2-port USB 3.1 Gen 1 hub for 5 Gbps data transfers and supports USB Power Delivery (PD) 3.0 up to 60W. This allows a connected laptop to charge via the same cable used for video and data, significantly reducing cable clutter. The unit supports Cinema 4K resolutions up to 4096 x 2160 @ 60Hz, ensuring the visual precision required for CAD/CAM and video editing. Deployment is seamless across office or edge environments, offering flexible switching via front-panel pushbuttons, keyboard hotkeys, mouse wheel clicks, or a remote port selector. By consolidating hardware control, the CS1953 streamlines multi-OS management without compromising signal integrity.

Specifications :

Brand ATEN
Part Number CS1953
Product Type kvm switchbox
Computer Connections 3 (2x DisplayPort, 1x USB-C)
Max Resolution 4096 x 2160 @ 60Hz
USB Hub 2x USB 3.1 Gen 1 Type-A
USB-C Power Delivery Up to 60W (requires external power)
Video Input 2x DisplayPort Female, 1x USB-C Female
Video Output 1x DisplayPort Female
Audio Support 2.1 Channel Surround Sound
HDCP Compliance HDCP 2.2
Operating Temperature 0°C to 40°C
Dimensions 206.3 x 75.4 x 44.0 mm
Weight 0.50 kg

Additional information

Weight 0.50 kg
Dimensions 20.63 × 7.54 × 4.40 cm
