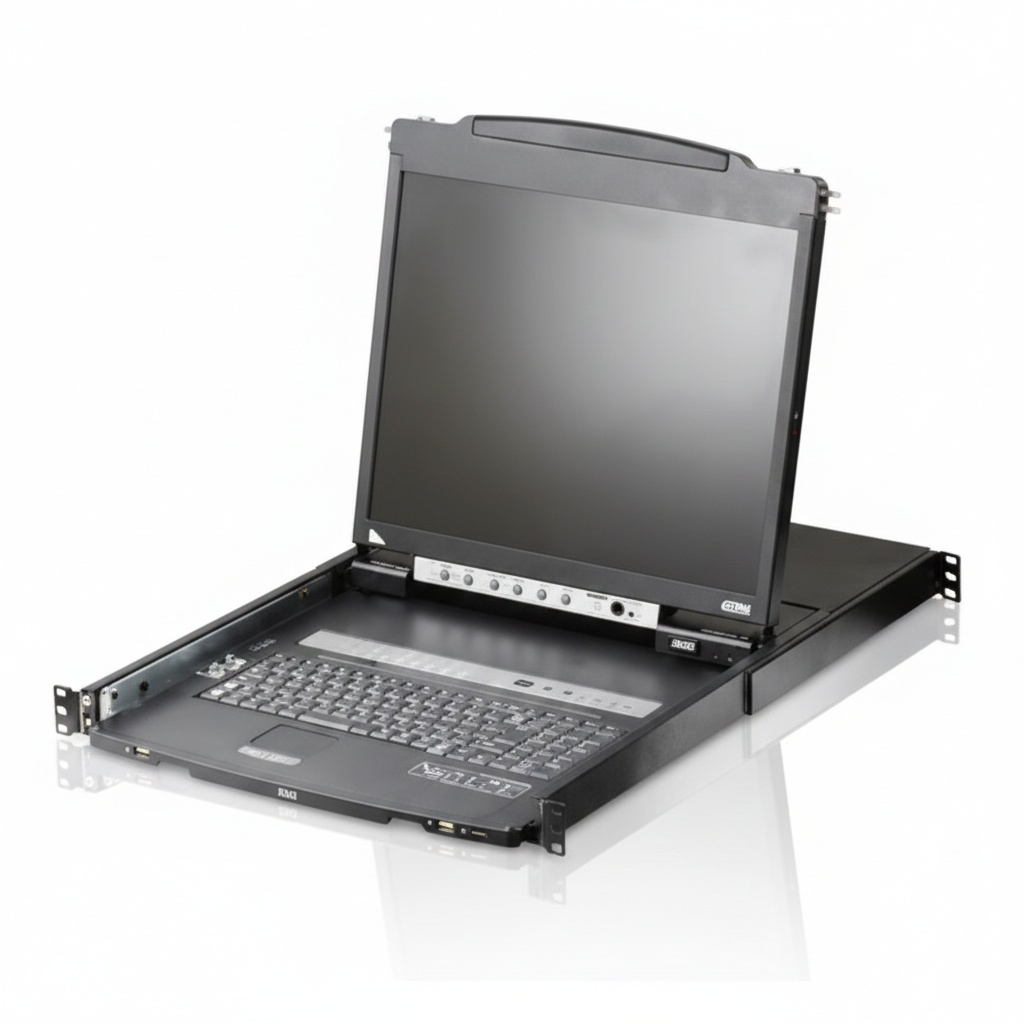

ATEN CL5808N 8-Port Dual Rail 19″ LCD KVM Switch
Roll over image to zoom in
12,698.16 AED14,479.50 AED (-12%)
Key Features
- Dual-rail housing for independent LCD and keyboard movement.
- Integrated 8-port KVM switch controls up to 256 computers.
- Supports both PS/2 and USB server interface connections.
- Front-panel USB port for convenient external mouse access.
ATEN CL5808N 8-Port Dual Rail 19″ LCD KVM Switch in Dubai
Overview :
The ATEN CL5808N is a professional-grade 1U rackmount control unit engineered for high-density server environments where spatial efficiency and continuous monitoring are critical. As a senior-tier member of the Slideaway series, this unit integrates an 8-port KVM switch with a 19-inch LED-backlit LCD panel. The defining technical differentiator is its dual-rail housing, which allows the LCD monitor to slide independently of the keyboard and touchpad. This enables system administrators to keep the display active for real-time monitoring while the keyboard is retracted, maintaining clear aisles in narrow data center rows.
Designed for scalability, the CL5808N supports daisy-chaining with up to 31 additional KVM switches, allowing a single console to manage up to 256 computers. It provides cross-platform support for both PS/2 and USB interfaces through custom KVM cable sets. Deployment is optimized for enterprise data centers, server rooms, and edge computing facilities that require robust, hardware-based access without the overhead of software-defined remote management. The unit also features a front-panel USB port for an external mouse and a dedicated station for an optional second console, ensuring flexible local management.
Specifications :
| Brand | ATEN |
| Part Number | CL5808N |
| Product Type | Dual Rail LCD KVM Switch |
| LCD Size | 19 inches |
| Number of Ports | 8 |
| Maximum Connections | 256 (via Daisy-chain) |
| Resolution | 1280 x 1024 @ 75 Hz |
| Rack Space | 1U |
| Input Power | 100–240V AC; 50/60Hz; 1A |
| Power Consumption | 120V/25.3W; 230V/26.1W |
| Dimensions (WxDxH) | 480 x 680 x 44 mm |
| Operating Temp | 0 to 40°C |
| Weight | 14.58 kg |
Additional information
| Weight | 14.48 kg |
|---|---|
| Dimensions | 68.04 × 48.0 × 4.4 cm |
