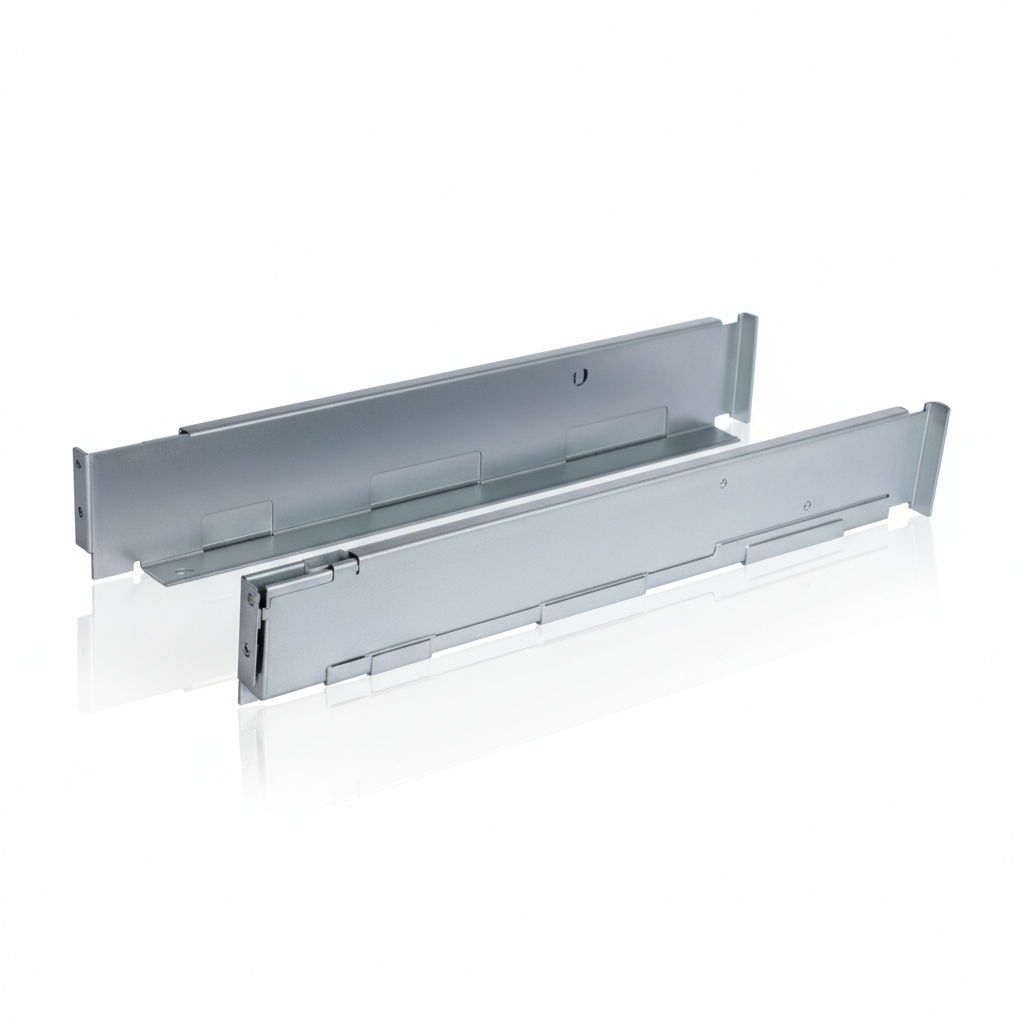

APC SRTGRK1 – Smart-UPS SRT 19″ Rail Kit
19″ Rail Kit for Smart-UPS SRT 5-10kVA.
Condition: New
Please fill the form to get price quote.
APC SRTGRK1 – Smart-UPS SRT 19″ Rail Kit
Overview :
The APC SRTGRK1 is a professional-grade 19-inch rail kit engineered specifically for the secure rack-mount installation of Smart-UPS SRT 5kVA to 10kVA uninterruptible power supplies and their associated external battery packs. In enterprise data centers, campus network closets, and high-density edge computing environments, maintaining the structural integrity of the rack is paramount. This kit provides the robust mechanical support required to transition tower-configured units into a rack-mount orientation or to replace legacy rails during hardware refreshes.
Key Features :
Supports Smart-UPS SRT 5kVA to 10kVA power modules.
Heavy-duty steel construction for high-load stability.
Compatible with standard 19-inch 4-post rack enclosures.
Includes all necessary mounting hardware and brackets.
Specifications :
| Brand | APC |
| Part Number | SRTGRK1 |
| Product Type | UPS Rail Kit |
| Compatibility | Smart-UPS SRT 5kVA, 6kVA, 8kVA, 10kVA |
| Rack Size | 19″ |
| Rack Units | 1U |
| Material | Heavy-gauge steel |
| Net Weight | 2.73 kg |
| Shipping Weight | 3.64 kg |
| Dimensions (W x D x H) | 527 mm x 89 mm x 44 mm |
| Operating Temperature | 0 – 40 °C |
| Storage Temperature | -15 – 45 °C |
Frequently Asked Questions :
Is the SRTGRK1 compatible with 2-post racks?
No, this rail kit is specifically designed for 4-post rack environments to provide the necessary front and rear support for heavy SRT series UPS units.
Does this kit include the mounting screws for the rack?
Yes, the SRTGRK1 includes the required mounting brackets, screws, and an installation guide to facilitate a complete setup.
Can I use this kit for external battery packs (EBMs)?
Yes, it is compatible with the SRT192BP and SRT192RMBP battery modules used with the SRT 5kVA through 10kVA UPS models.
Additional information
| Weight | 3.1 kg |
|---|---|
| Dimensions | 468 × 73.5 × 44.5 cm |
| Brand | Apc |
| Condition | New |
