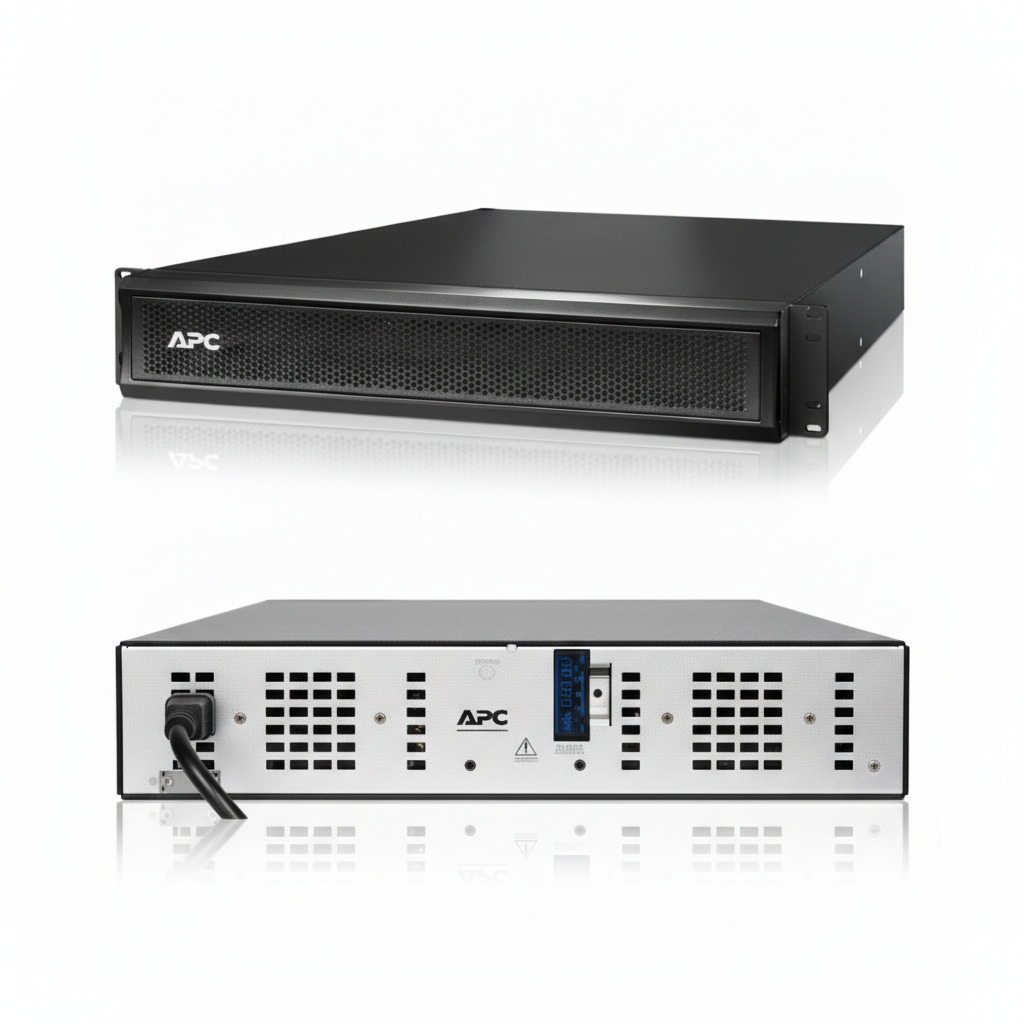

Name: APC SMX48RMBP2U – 48V External Battery Pack for Smart-UPS X
Brand: APC
SKU: SMX48RMBP2U
Availability: InStock

APC SMX48RMBP2U – 48V External Battery Pack for Smart-UPS X

Overview :

The APC SMX48RMBP2U is a high-performance external battery pack (EBP) engineered specifically for the Smart-UPS X series, covering the 750VA to 1500VA range. In enterprise IT environments where business continuity is non-negotiable, this unit provides the essential runtime scalability required to protect critical infrastructure during extended power outages. It is a staple in edge computing deployments, branch offices, and distributed server rooms where networking gear, storage arrays, and VoIP systems must remain operational well beyond the capacity of internal UPS batteries.

Designed for seamless integration, the SMX48RMBP2U features a plug-and-play connection system that supports daisy-chaining up to 10 battery packs to a single UPS. This modularity allows IT managers to scale their power protection strategy as their hardware footprint grows. The unit is housed in a 2U rackmount/tower convertible chassis, offering physical deployment flexibility. Its intelligent battery management system ensures the host UPS automatically detects the additional capacity, providing highly accurate “minutes remaining” calculations. This level of visibility is vital for automated disaster recovery orchestration and remote monitoring via Network Management Cards, ensuring that graceful shutdowns only occur when absolutely necessary.

Key Features :

Scalable runtime by daisy-chaining up to 10 packs.

Automatic detection by Smart-UPS for accurate runtime.

2U rackmount or tower convertible for flexible setup.

Hot-swappable batteries ensure zero downtime maintenance.

Specifications :

Brand	APC
Part Number	SMX48RMBP2U
Product Type	External Battery Pack
Battery Voltage	48 V
Battery Type	Maintenance-free sealed Lead-Acid (VRLA)
Rack Height	2U
Dimensions (H x W x D)	89 mm x 432 mm x 490 mm
Net Weight	28.64 kg
Operating Temperature	0 – 40 °C
Storage Temperature	-15 – 45 °C
Expected Battery Life	3 – 5 years
Compatibility	SMX750, SMX1000, SMX1500 series
Color	Black

Frequently Asked Questions :

How many SMX48RMBP2U packs can I connect to a single UPS?

You can daisy-chain up to 10 external battery packs to a single compatible Smart-UPS X model, allowing for significantly extended runtimes for critical loads.

Does the UPS need to be powered down to add this battery pack?

No, the SMX48RMBP2U supports hot-swapping and live connection. The Smart-UPS will automatically detect the new battery pack and update the estimated runtime on the management interface.

Is the mounting hardware included for rack installation?

Yes, the unit includes the necessary rack-mounting brackets and the communication/power cable required to connect the unit to the host UPS or an existing battery chain.

Additional information

Weight	35.426 kg
Dimensions	62.000 × 59.000 × 25.000 cm
Brand	Apc
