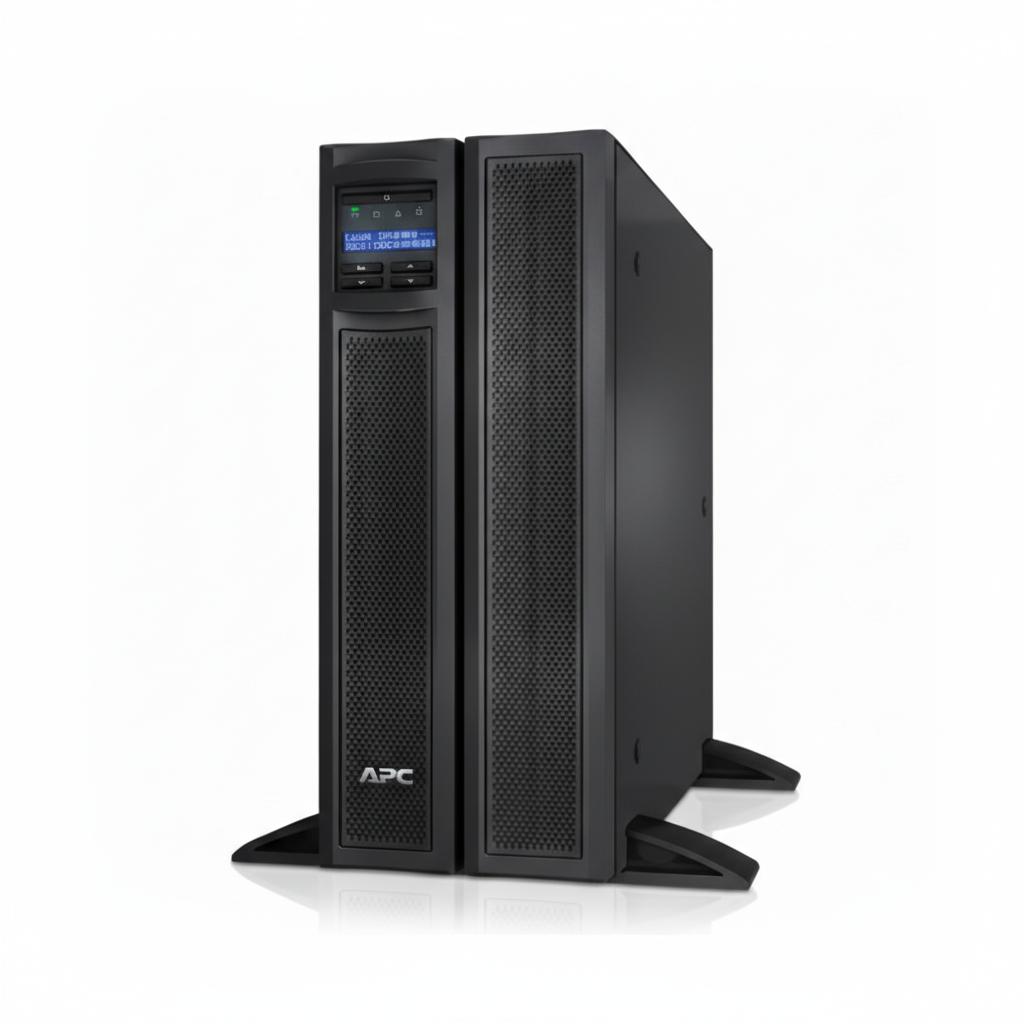

APC SMX2200HV – Smart-UPS X 2200VA Rack/Tower 230V
9,712.50 AED
2.2kVA Extended Run Rack/Tower UPS.
Description
APC SMX2200HV – Smart-UPS X 2200VA Rack/Tower 230V
Overview :
The APC SMX2200HV is a high-density, line-interactive power protection solution designed for mission-critical servers, voice/data networks, and distributed IT environments. Operating on a 230V nominal input, this 2200VA/1980W unit is a cornerstone of the Smart-UPS X family, specifically engineered for applications requiring extended backup runtimes. Its versatile 4U rack/tower convertible form factor makes it ideal for diverse deployment contexts, from cramped branch office wiring closets to standardized enterprise data center racks and edge computing sites.
Key Features :
Scalable runtime via external battery packs.
Convertible 4U chassis for rack or tower use.
Pure sine wave output for sensitive electronics.
Green mode for high efficiency and low heat.
Specifications :
| Brand | APC |
| Part Number | SMX2200HV |
| Product Type | Line-Interactive UPS |
| Output Power Capacity | 1980 Watts / 2200 VA |
| Nominal Output Voltage | 230V |
| Output Connections | (8) IEC 320 C13, (2) IEC 320 C19 |
| Nominal Input Voltage | 230V |
| Input Connection | IEC 320 C20 |
| Waveform Type | Sine wave |
| Transfer Time | 2-4ms typical |
| Battery Type | Lead-acid battery |
| Rack Height | 4U |
| Dimensions (H x W x D) | 432 mm x 178 mm x 483 mm |
| Operating Temperature | 0 – 40 °C |
Frequently Asked Questions :
Can I add more battery packs to increase backup time?
Yes, the SMX2200HV supports up to 10 external battery packs (SMX120BP), allowing for significantly extended runtimes for critical loads during long-duration power events.
Does this unit provide a pure sine wave or simulated sine wave?
It provides a pure sine wave output while on battery, which is essential for the reliable operation of active PFC (Power Factor Corrected) servers and sensitive networking hardware.
What is the benefit of the “Green Mode” feature?
Green Mode bypasses unused electrical components in good power conditions, achieving very high operating efficiency without sacrificing protection, which reduces utility costs and heat generation.
Specification
Additional information
| Weight | 38.56 kg |
|---|---|
| Dimensions | 483 × 178 × 432 cm |
| Brand | Apc |
